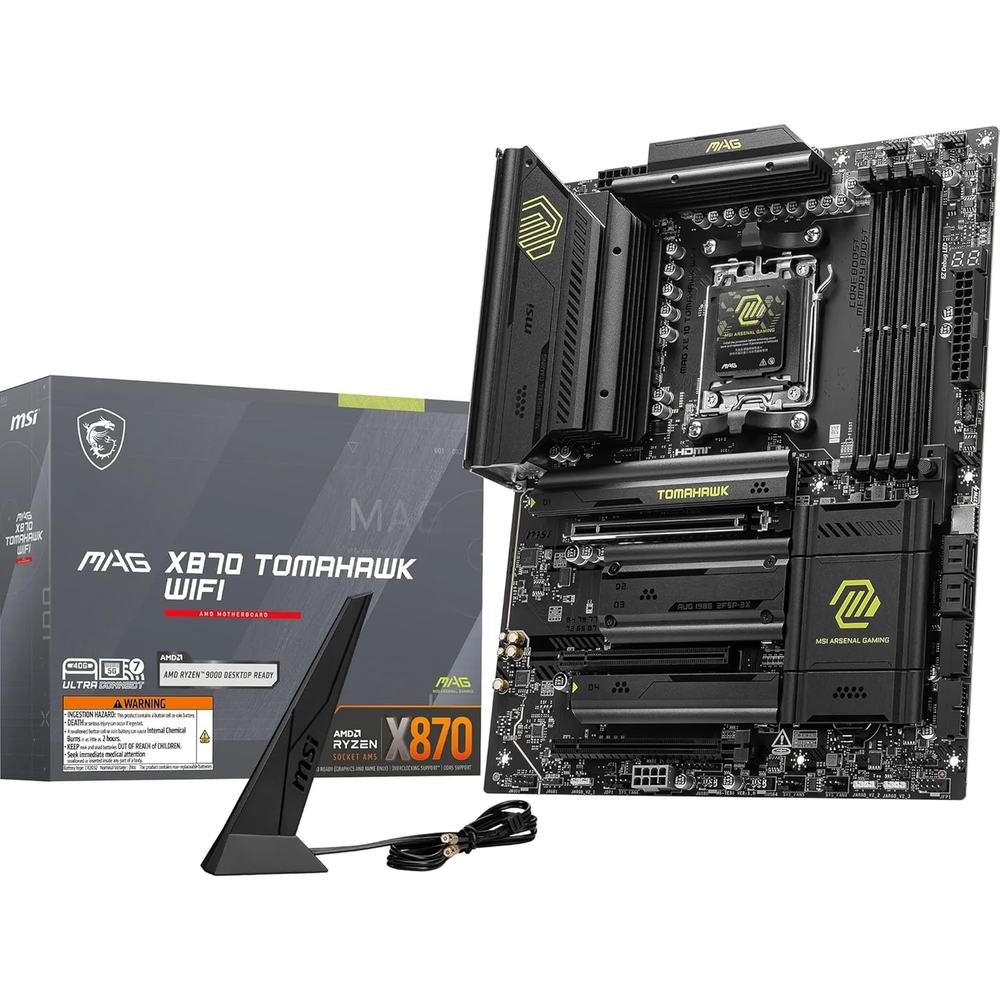

MSI MAG X870 TOMAHAWK WIFI Motherboard
Technical specification
AMD X870 ATX Motherboard for AM5 — 14+2+1 Phase VRM, Wi-Fi 7, 5G LAN, Dual USB4 40Gbps, Dual PCIe 5.0 M.2, DDR5 8400+ OC, Ryzen 9000 / 8000 / 7000 Ready.
The MSI MAG X870 TOMAHAWK WIFI brings the legendary Tomahawk formula to the AMD X870 (non-E) chipset — offering premium-tier connectivity at a more competitive price. With a 14+2+1 Duet Rail Power System, dual 8-pin CPU connectors on an 8-layer 2oz copper PCB, dual USB4 40Gbps Type-C ports, Wi-Fi 7 (Qualcomm), 5G LAN, and dual CPU-direct PCIe 5.0 M.2 slots, it punches well above its chipset tier. Note: USB4 40Gbps and M.2_2 (PCIe 5.0 x4) share bandwidth — both run at x2 when simultaneously active; M.2_3 and PCI_E3 also share bandwidth (x2 each by default; BIOS toggle to prioritize one at x4).
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 14+2+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, Memory Boost, 8-layer 2oz copper server-grade PCB
>Storage: 4x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 22110/2280); M.2_2: PCIe 5.0 x4 (CPU, 2280/2260)*; M.2_3: PCIe 4.0 x2 (Chipset, 2280/2260)**; M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G — M.2 Shield Frozr (*shared x2 w/ USB4 40Gbps; **shared x2 w/ PCI_E3)
>Connectivity: Qualcomm Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4, Realtek RTL8126 5G LAN
>USB: Rear — 2x USB4 40Gbps Type-C, 2x USB 10Gbps Type-A, 3x USB 5Gbps Type-A, 4x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0
>PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset, shared w/ M.2_3) — EZ PCIe Release
>Audio: Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, up to 32-bit/384kHz
| Specification | Details |
|---|---|
| Chipset | AMD X870 |
| Socket | AM5 |
| Form Factor | ATX (305 x 244 mm), 8-layer 2oz copper server-grade PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 8400–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8400+ MT/s OC |
| Memory Standard | AMD EXPO, XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered, High-Efficiency Mode |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset, shared bandwidth with M.2_3) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 22110/2280); M.2_2: PCIe 5.0 x4 CPU (2280/2260, shared x2 w/ USB4 40Gbps); M.2_3: PCIe 4.0 x2 (Chipset, shared w/ PCI_E3); M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); M.2 Shield Frozr |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8126 5G LAN |
| Wireless | Qualcomm Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4 |
| USB4 / 40Gbps | 2x USB4 40Gbps Type-C (Rear) — shared bandwidth with M.2_2 |
| Rear USB | 2x USB4 40Gbps Type-C, 2x USB 10Gbps Type-A, 3x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0 |
| Audio | Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, 32-bit/384kHz |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/Sys), 6x System Fan, Smart Fan 6 |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| Extras | EZ M.2 Shield Frozr, EZ M.2 Clip, EZ PCIe Release, EZ Conn header, Flash BIOS Button, Clear CMOS Button, Click BIOS 5, metal backplate |
| OS Support | Windows 11 / 10 64-bit |
