Motherboard // MSI

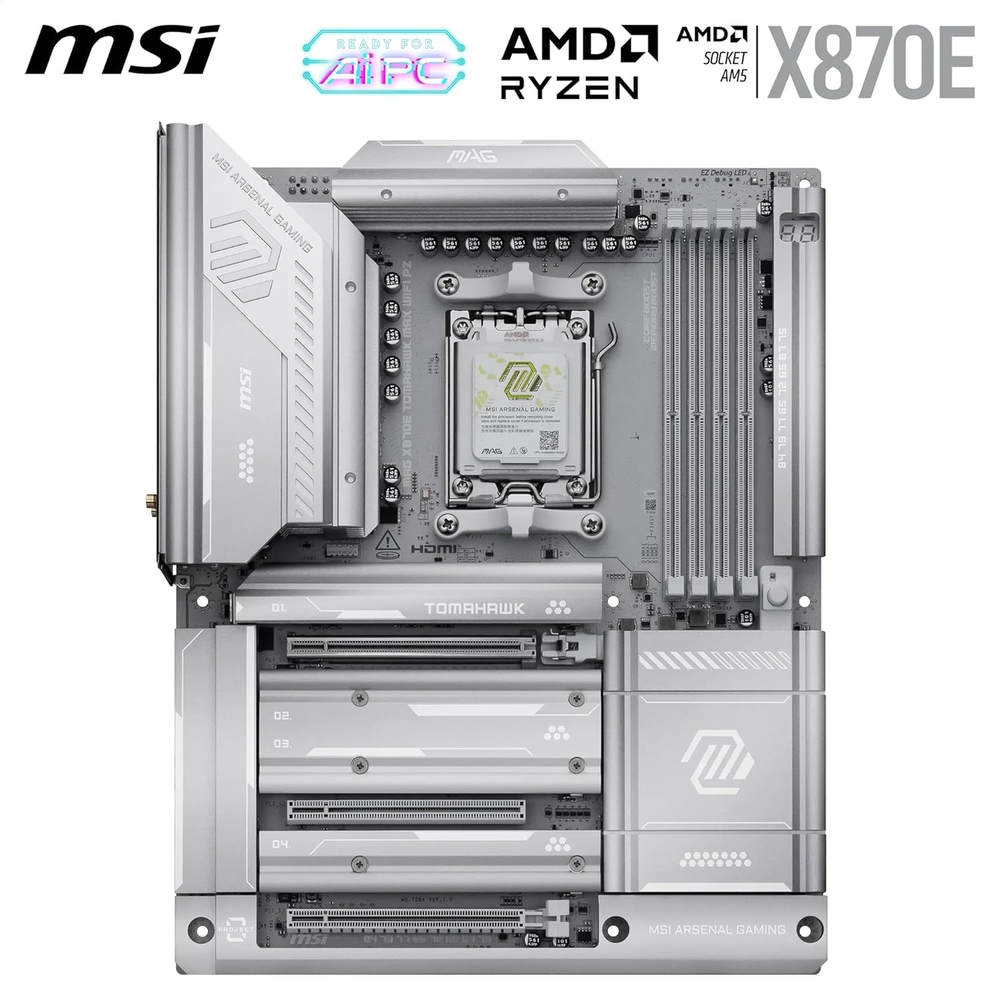

MSI MAG X870E TOMAHAWK MAX WIFI Motherboard
Price inclusive of all taxes
Technical specification
AMD X870E ATX Motherboard for AM5 — Wi-Fi 7, 5G LAN, USB 40Gbps, Dual PCIe 5.0 M.2, 14+2+1 Phase VRM, DDR5 8400+ OC, Ryzen 9000 / 8000 / 7000 Ready.
The MSI MAG X870E TOMAHAWK MAX WIFI takes the legendary Tomahawk series to the next level with the AMD X870E chipset. Packed with a 14+2+1 Duet Rail Power System with 80A Smart Power Stages, dual 8-pin CPU power connectors, 5G LAN, full-speed Wi-Fi 7, USB 40Gbps Type-C, dual PCIe 5.0 M.2 (CPU direct), and MSI's exclusive EZ DIY features — it's built to dominate AMD Ryzen 9000 builds without compromise.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 14+2+1 Duet Rail Power System, 80A Smart Power Stages, dual 8-pin CPU connectors, Core Boost, Memory Boost, 8-layer 2oz copper server-grade PCB
>Storage: 4x M.2 — M.2_1 & M.2_2: PCIe 5.0 x4 (CPU direct, 22110/2280 & 2280/2260); M.2_3 & M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G — M.2 Shield Frozr
>Connectivity: Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4, 5G LAN
>USB: Rear — 1x USB4 40Gbps Type-C, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0; Front — 4x USB 5Gbps, 1x USB 20Gbps Type-C, 4x USB 2.0
>PCIe: 1x PCIe 5.0 x16 (CPU, Steel Armor), 1x PCIe 4.0 x16 (Chipset, x4 mode), 1x PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC4080, 7.1-CH, Audio Boost 5, S/PDIF, up to 32-bit/384kHz
| Specification | Details |
|---|---|
| Chipset | AMD X870E |
| Socket | AM5 |
| Form Factor | ATX (305 x 244 mm), 8-layer 2oz copper server-grade PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 8400–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8400+ MT/s OC |
| Memory Standard | AMD EXPO, XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 4.0 x16 slot (x4 bandwidth, Chipset); PCI_E3: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 22110/2280); M.2_2: PCIe 5.0 x4 (CPU, 2280/2260); M.2_3 & M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); M.2 Shield Frozr |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | 5G LAN |
| Wireless | Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4 |
| USB4 / 40Gbps | 1x USB4 40Gbps Type-C (Rear) |
| Rear USB | 1x USB4 40Gbps Type-C, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0 |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0 |
| Audio | Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, 32-bit/384kHz |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 6x System Fan, Smart Fan 6 |
| RGB | 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| Extras | EZ M.2 Clip, EZ PCIe Release, EZ LED Control, EZ Conn (front panel), Click BIOS 5, Frozr AI Control, metal backplate |
| OS Support | Windows 11 / 10 64-bit |
