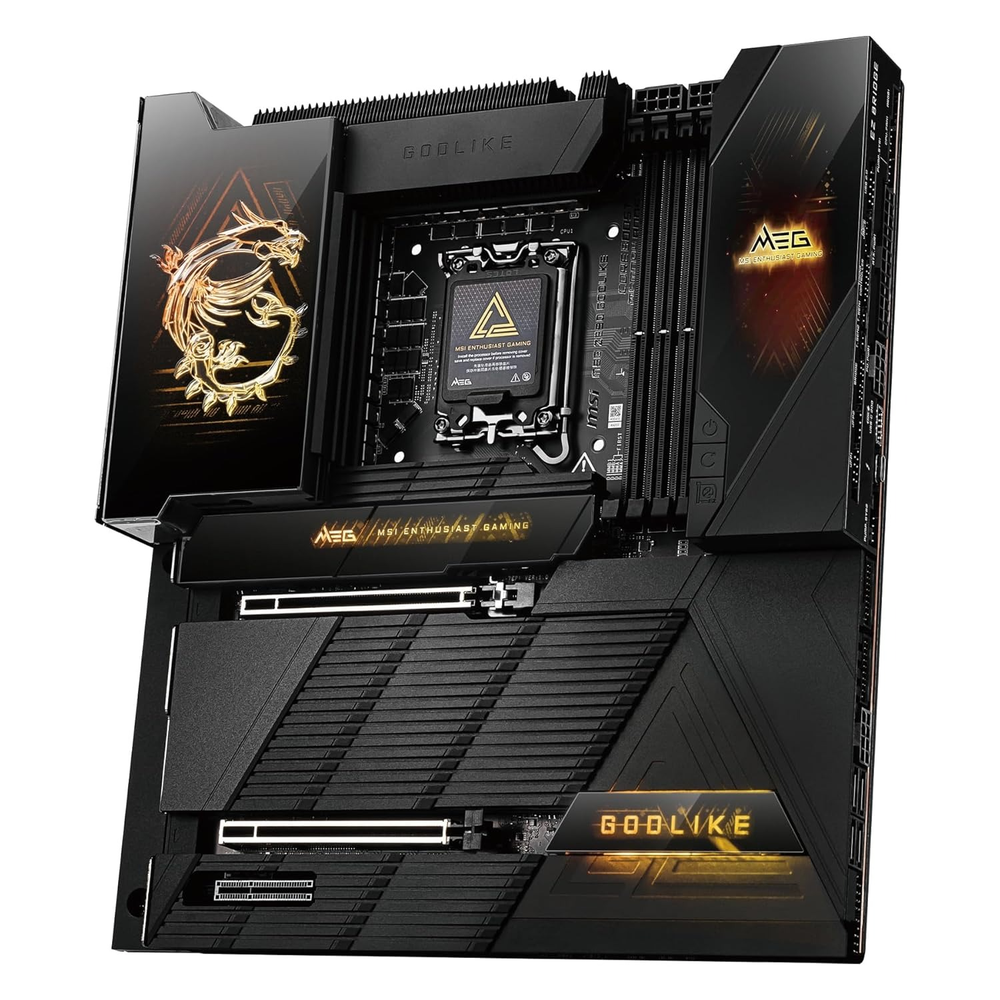

MSI MEG X870E GODLIKE Motherboard
Technical specification
MSI's Ultimate AMD X870E E-ATX Flagship — Wi-Fi 7, 10G LAN, USB4 40Gbps, 7x M.2 Gen5, Dynamic Dashboard III, and DDR5 9200+ for AMD Ryzen 9000 / 8000 / 7000.
The MSI MEG X870E GODLIKE is the pinnacle of AMD motherboard engineering on the AM5 socket — an E-ATX behemoth powered by AMD X870E chipset. It features a 24+2+1 phase VRM with 110A power stages, Wi-Fi 7 (up to 5.8Gbps), 10G Super LAN, dual USB4 40Gbps Type-C, 7x M.2 slots (5x onboard + 2x via M.2 XPANDER-Z SLIDER GEN5 card), dual PCIe 5.0 x16 slots, DDR5 9200+ OC, and MSI's iconic 3.99-inch Dynamic Dashboard III LCD — everything a no-compromise overclocker or professional build demands.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 24+2+1 Duet Rail Power System, 110A power stages (Renesas RAA229628), dual 8-pin CPU connectors, 10-layer server-grade PCB, Frozr Design with direct-touch cross heat-pipe, 9W/mk thermal pad
>Storage: 7x M.2 total — M.2_1 & M.2_2: PCIe 5.0 x4 (CPU, 2280/2260); M.2_3: PCIe 4.0 x4 (Chipset, 22110/2280); M.2_4: PCIe 4.0 x2 (Chipset, 2280/2260); M.2_5: PCIe 4.0 x4 (Chipset, 2280/2260); M.2 XPANDER-Z SLIDER GEN5 adds 2x more PCIe 5.0 x4; 4x SATA 6G | RAID 0/1/10 — Double-sided M.2 Shield Frozr
>Connectivity: Intel Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps), 10G Super LAN + 2.5G LAN, Bluetooth 5.4
>USB: Rear — 8x USB 10Gbps Type-A, 5x USB 10Gbps Type-C, 2x USB4 40Gbps Type-C; Front — 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C, 4x USB 2.0
>Dynamic Dashboard III: 3.99-inch IPS LCD on board — display temps, clocks, custom images, system info in real time
>Audio: Realtek ALC4082 + ESS9219Q Combo DAC/HPA, 7.1-CH USB High-Performance Audio, S/PDIF, up to 32-bit/384kHz
| Specification | Details |
|---|---|
| Chipset | AMD X870E |
| Socket | AM5 |
| Form Factor | E-ATX (305 x 277 mm), 10-layer server-grade PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 9200+ MT/s (OC) / 5600–4800 MT/s (JEDEC) |
| Memory Standard | AMD EXPO, XMP 3.0, CUDIMM supported, Dual Channel, non-ECC unbuffered |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 5.0 x8 (CPU); PCI_E3: PCIe 4.0 x4 (Chipset) — Dual SMT PCIe 5.0 slots with Steel Armor II |
| M.2 Slots | 5x onboard + 2x via M.2 XPANDER-Z SLIDER GEN5 — M.2_1/2: PCIe 5.0 x4; M.2_3/5: PCIe 4.0 x4; M.2_4: PCIe 4.0 x2; Double-sided M.2 Shield Frozr |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | 10G Super LAN + Realtek 2.5G LAN (dual LAN) |
| Wireless | Intel Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt / USB4 | 2x USB4 40Gbps Type-C (Rear), supports DisplayPort 1.4 |
| Rear USB | 8x USB 10Gbps Type-A, 5x USB 10Gbps Type-C, 2x USB4 40Gbps Type-C |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C, 4x USB 2.0 |
| Video Output | 2x USB4 Type-C DisplayPort 1.4 (4K@60Hz, iGPU only) |
| Audio | Realtek ALC4082 + ESS9219Q DAC/HPA, 7.1-CH, S/PDIF, 32-bit/384kHz |
| Fan Headers | 1x CPU Fan, 2x Pump Fan, 8x System Fan, Combo FAN header, Frozr Control |
| RGB / Display | Dynamic Dashboard III (3.99" IPS LCD), 4x ARGB V2, 2x RGB, 4x EZ Debug LED |
| Extras | EZ Bridge module, M.2 XPANDER-Z SLIDER GEN5, Supplemental PCIe Power connector, Click BIOS X |
| OS Support | Windows 11 / 10 64-bit |
