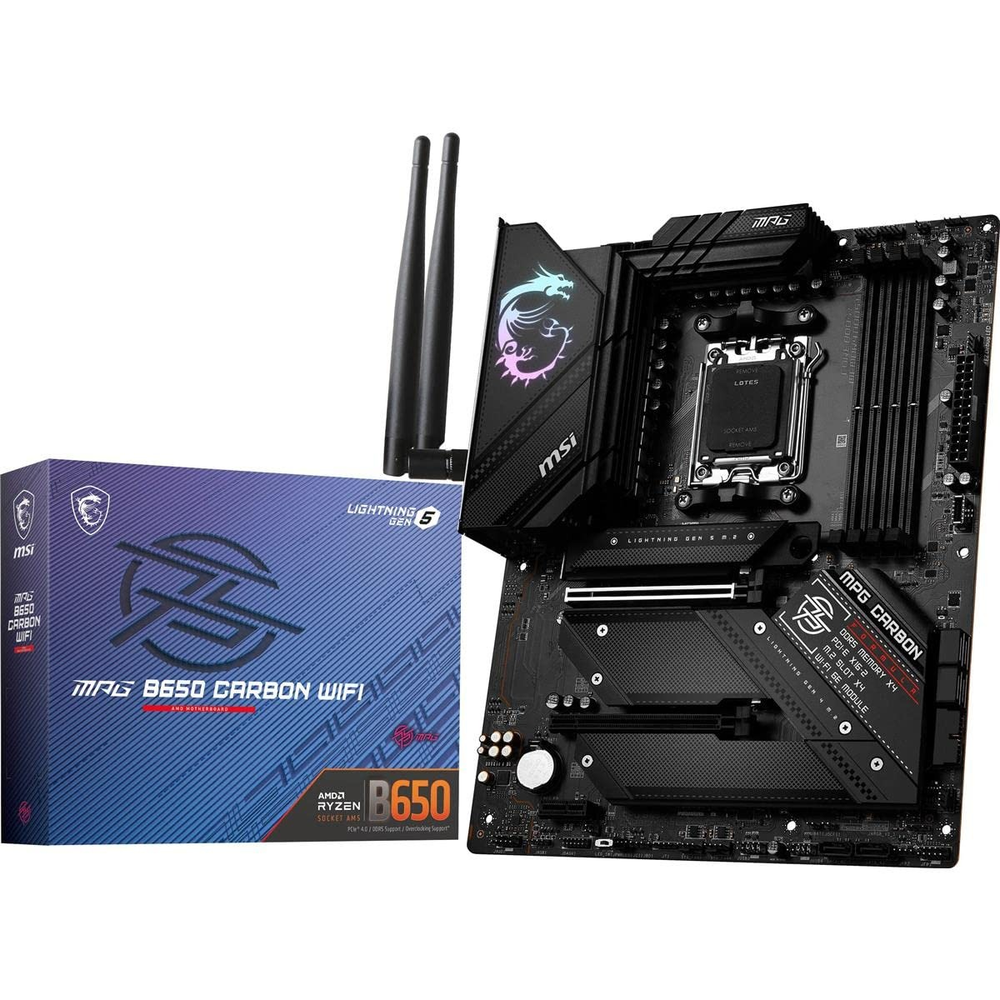

MSI MPG B650 CARBON WIFI Motherboard
Price inclusive of all taxes
Technical specification
AMD B650 ATX Motherboard for AM5 — 16+2+1 Duet Rail Power System, Dual 8-pin CPU, Wi-Fi 6E, 2.5G LAN, USB 20Gbps Type-C, 1x PCIe 5.0 + 3x PCIe 4.0 M.2, DDR5 7800+ OC, 6x SATA, ALC4080 Audio, Ryzen 9000 / 8000 / 7000 Ready.
The MSI MPG B650 CARBON WIFI is the flagship B650 gaming board — built for premium Ryzen 7000/8000/9000 ATX systems with serious VRM headroom (16+2+1 Duet Rail, dual 8-pin CPU), Lightning USB 20G rear Type-C, Wi-Fi 6E (160MHz, MU-MIMO, BT 5.3), and a full four M.2 array (1x PCIe 5.0 + 3x PCIe 4.0). The double-sided M.2 Shield Frozr heatsinks, enlarged PCH heatsink, Realtek ALC4080 high-res audio, and 2x PCIe 4.0 x16 GPU slots make it the most fully-loaded B650 option for enthusiast AMD gaming builds.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 16+2+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, Memory Boost, 7W/mK thermal pads, SMT welding
>Storage: 4x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260); M.2_3: PCIe 4.0 x4 (CPU, 2280/2260); M.2_4: PCIe 4.0 x4 (Chipset, 22110/2280/2260); 6x SATA 6G — M2_2 & M2_3 unavailable with Ryzen 8000
>Connectivity: AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3, Realtek RTL8125 2.5G LAN
>USB: Rear — 2x USB 2.0, 7x USB 10Gbps Type-A, 1x USB 20Gbps Type-C; Front — 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 4.0 x4 (CPU); PCI_E3: PCIe 3.0 x1 (Chipset); PCI_E1 runs at x8 when M2_2 or M2_3 in use
>Audio: Realtek ALC4080, 7.1-CH, Audio Boost 5 HD, up to 32-Bit/384kHz
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | ATX (304.8 x 243.84 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 7800+(OC) / 4800(JEDEC) MHz; 1DPC 1R max 7800+ MHz / 1DPC 2R max 6400+ MHz / 2DPC 1R max 6400+ MHz / 2DPC 2R max 5400+ MHz OC |
| Memory Standard | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 4.0 x4 (CPU); PCI_E3: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU); M.2_3: PCIe 4.0 x4 (CPU); M.2_4: PCIe 4.0 x4 (Chipset, 22110/2280/2260); double-sided M.2 Shield Frozr |
| SATA | 6x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8125 2.5G LAN |
| Wireless | AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3 |
| Rear USB | 2x USB 2.0, 7x USB 10Gbps Type-A, 1x USB 20Gbps Type-C |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Video Output | 1x HDMI 2.1 (4K@60Hz) — iGPU only |
| Audio | Realtek ALC4080, Audio Boost 5 HD, 7.1-CH, up to 32-Bit/384kHz |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/Sys), 6x System Fan, Smart Fan 6 |
| RGB | 3x ARGB V2 headers, 1x RGB header, onboard RGB lighting, 4x EZ Debug LED |
| Extras | M.2 Shield Frozr (double-sided), EZ M.2 Clip, EZ PCIe Release, EZ Conn header, EZ Antenna, Flash BIOS Button, Click BIOS 5, MSI Center, enlarged PCH heatsink, metal backplate |
| OS Support | Windows 11 64-bit |
