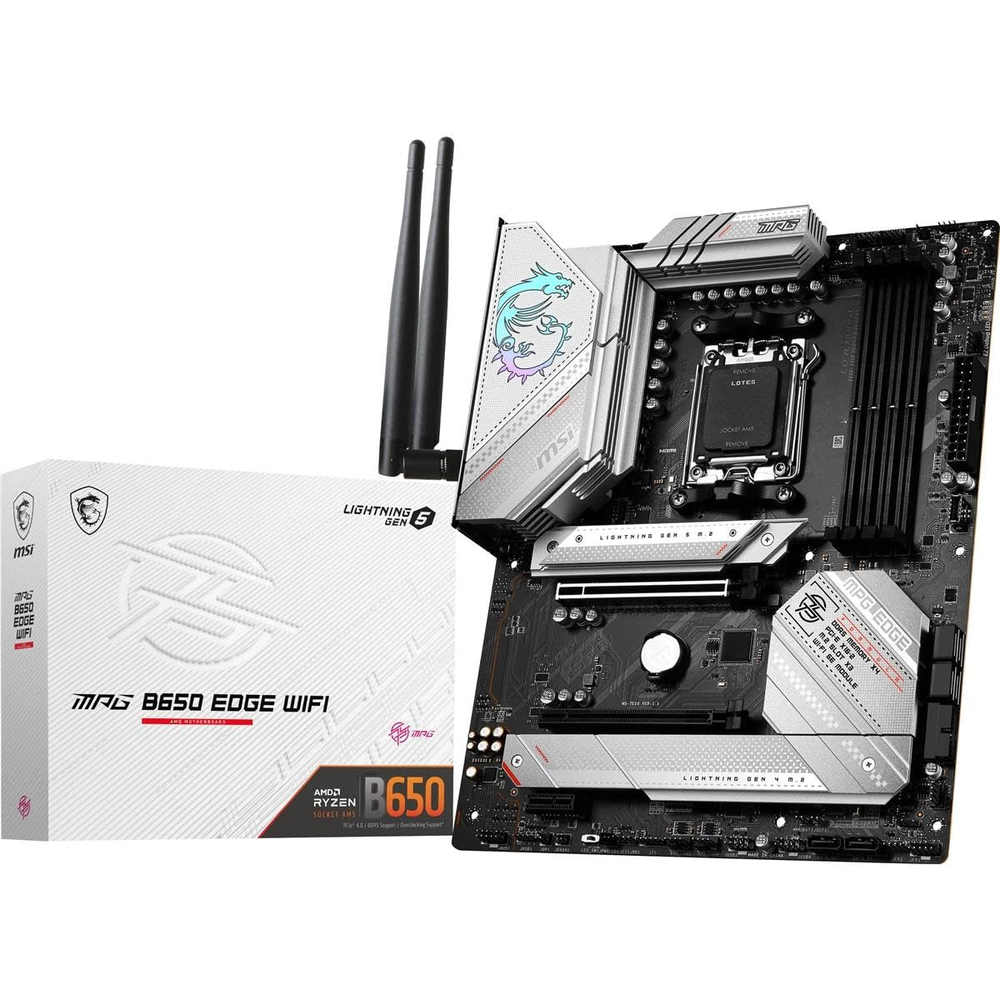

MSI MPG B650 EDGE WIFI Motherboard
Technical specification
AMD B650 ATX Motherboard for AM5 — 14+2+1 DRPS VRM, 80A SPS, 6-layer 2oz copper PCB, Wi-Fi 6E (160MHz), 2.5G LAN, USB 20Gbps Type-C, 1x PCIe 5.0 + 2x PCIe 4.0 M.2, DDR5 7800+ OC, 6x SATA, M.2 Shield Frozr, Ryzen 9000 / 8000 / 7000 Ready.
The MSI MPG B650 EDGE WIFI is the mid-high tier ATX board in the MPG B650 family — delivering a 14+2+1 Duet Rail Power System with 80A SPS on a 6-layer 2oz PCB, AMD Wi-Fi 6E (160MHz, MU-MIMO, BT 5.3), Realtek 2.5G LAN, Lightning USB 20Gbps rear Type-C, and three M.2 slots (1x PCIe 5.0 + 2x PCIe 4.0) all with M.2 Shield Frozr. With DisplayPort 1.4 + HDMI 2.1, Optical S/PDIF, 6x SATA, and an EZ LED Control switch, this is a highly capable step-down from the Carbon with excellent thermal and connectivity credentials.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 14+2+1 DRPS Duet Rail Power System, 80A Smart Power Stages, dual 8-pin CPU connectors, Core Boost, Memory Boost, 6-layer 2oz copper PCB, 7W/mK MOSFET thermal pads, choke thermal pads
>Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260; unavailable w/ Ryzen 8500/8300); M.2_3: PCIe 4.0 x4 (Chipset, 2280/2260); 6x SATA 6G — all with M.2 Shield Frozr
>Connectivity: AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3, Realtek RTL8125BG 2.5G LAN
>USB: Rear — 2x USB 2.0, 3x USB 5Gbps Type-A, 4x USB 10Gbps Type-A, 1x USB 20Gbps Type-C; Front — 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU, x8 Ryzen 8700/8600/8400, x4 Ryzen 8500/8300); PCI_E2: PCIe 4.0 x2 (Chipset); PCI_E3: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC4080, 7.1-CH, Audio Boost 5 HD, Optical S/PDIF out, up to 32-Bit/384kHz
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | ATX (304.8 x 243.84 mm), 6-layer 2oz copper PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 7800+(OC) / 4800(JEDEC) MHz; 1DPC 1R max 7800+ MHz / 1DPC 2R max 6400+ MHz / 2DPC 1R max 6400+ MHz / 2DPC 2R max 5400+ MHz OC |
| Memory Standard | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 4.0 x2 (Chipset); PCI_E3: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260); M.2_3: PCIe 4.0 x4 (Chipset, 2280/2260) — all M.2 Shield Frozr |
| SATA | 6x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3 |
| Rear USB | 2x USB 2.0, 3x USB 5Gbps Type-A, 4x USB 10Gbps Type-A, 1x USB 20Gbps Type-C |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 — iGPU only |
| Audio | Realtek ALC4080, Audio Boost 5 HD, 7.1-CH, Optical S/PDIF out, up to 32-Bit/384kHz |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 6x System Fan, Smart Fan 6 |
| RGB | 2x ARGB V2 headers, 2x RGB headers, 4x EZ Debug LED, 1x EZ LED Control switch |
| Extras | M.2 Shield Frozr (all slots), EZ M.2 Clip, EZ PCIe Release, EZ Conn header (JDASH), EZ Antenna, Flash BIOS Button, Click BIOS 5, enlarged chipset heatsink, Optical S/PDIF, metal backplate |
| OS Support | Windows 11 64-bit |
