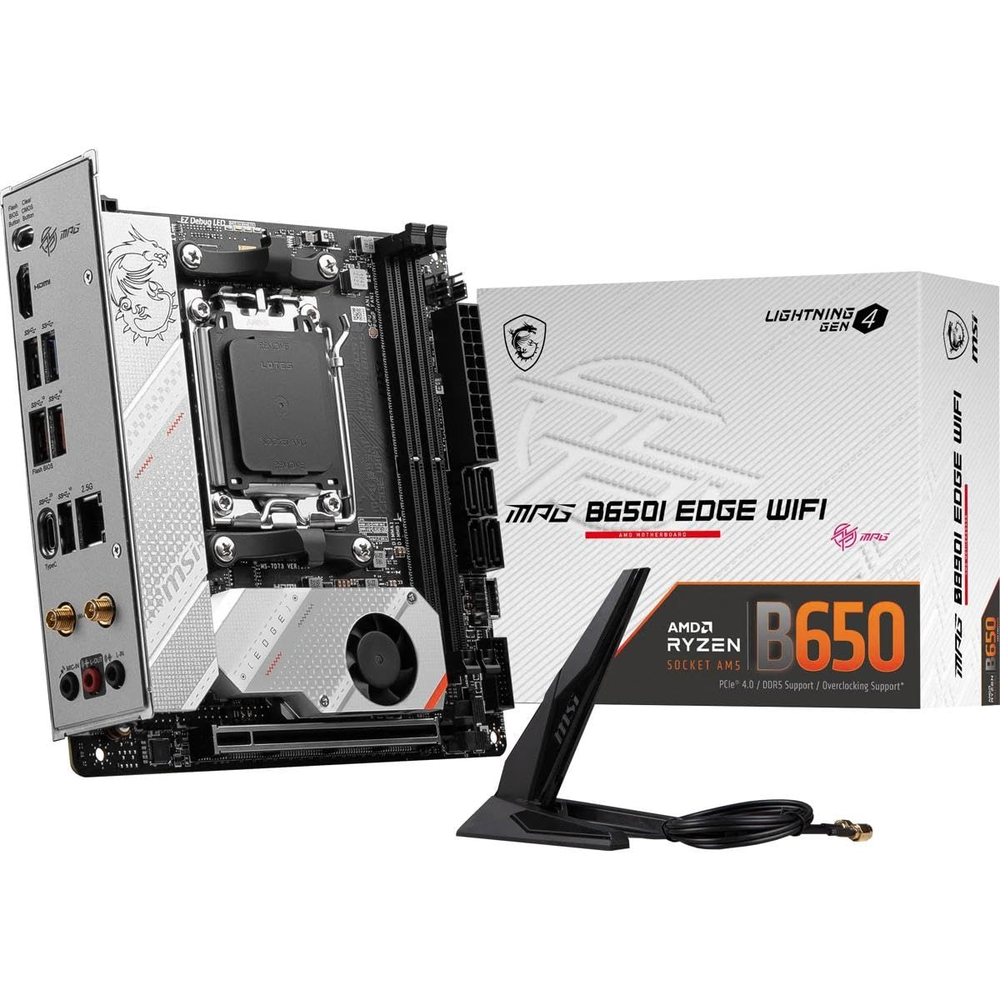

MSI MPG B650I EDGE WIFI Motherboard
Technical specification
AMD B650 Mini-ITX Motherboard for AM5 — Direct 8+2+1 VRM, 80A SPS, 10-layer 2oz copper PCB, Wi-Fi 6E (160MHz), 2.5G LAN, USB 20Gbps Type-C, 2x PCIe 4.0 M.2, DDR5 7200+ OC, 4x SATA, Ryzen 9000 / 8000 / 7000 Ready.
The MSI MPG B650I EDGE WIFI is MSI's premium Mini-ITX AM5 board — packing a Direct 8+2+1 VRM with 80A Smart Power Stages on a premium 10-layer 2oz copper PCB into a tiny 170 x 170mm footprint. It delivers AMD Wi-Fi 6E (160MHz, MU-MIMO, BT 5.3), Realtek 2.5G LAN, Lightning USB 20Gbps rear Type-C, USB 10Gbps front Type-C, two PCIe 4.0 x4 M.2 slots with M.2 Shield Frozr, and DDR5 OC up to 7200+ MT/s — exceptional connectivity and power for compact Ryzen 9000 ITX gaming builds.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: Direct 8+2+1 VRM, 80A Smart Power Stages, 1x 8-pin CPU connector, Core Boost, Memory Boost, 10-layer 2oz copper PCB, 7W/mK MOSFET thermal pads, choke thermal pads
>Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260); 4x SATA 6G | RAID 0, 1 — M.2 Shield Frozr
>Connectivity: AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3, Realtek RTL8125BG 2.5G LAN
>USB: Rear — 2x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C; Front — 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU, x8 Ryzen 8700/8600/8400, x4 Ryzen 8500/8300)
>Audio: Realtek ALC4080, 7.1-CH, Audio Boost 5 HD, up to 32-Bit/384kHz
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | Mini-ITX (170 x 170 mm), 10-layer 2oz copper PCB |
| Memory | 2x DDR5 UDIMM, up to 128GB; DDR5 7200+(OC) / 4800(JEDEC) MHz; 1DPC 1R max 7200+ MHz / 1DPC 2R max 6400+ MHz OC |
| Memory Standard | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260); M.2 Shield Frozr; No PCIe 5.0 M.2 |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3 — M.2 Key-E slot |
| Rear USB | 2x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C |
| Front USB Headers | 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Video Output | 1x HDMI 2.1 (4K@120Hz) — iGPU only |
| Audio | Realtek ALC4080, Audio Boost 5 HD, 7.1-CH, up to 32-Bit/384kHz |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 1x System Fan, Smart Fan 6 |
| RGB | 1x ARGB V2 header, 4x EZ Debug LED |
| Extras | M.2 Shield Frozr (both slots), EZ Antenna, Flash BIOS Button, Click BIOS 5, MSI Center, 10-layer PCB, metal backplate |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
