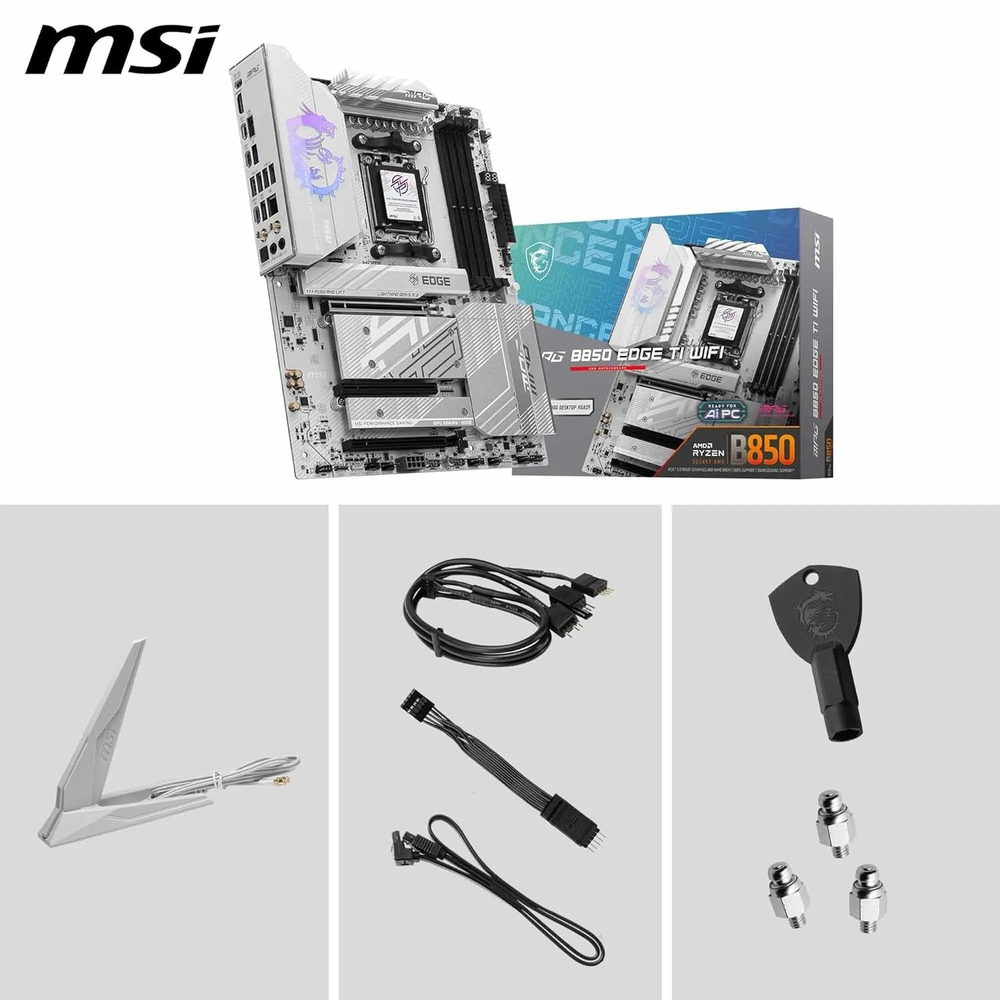

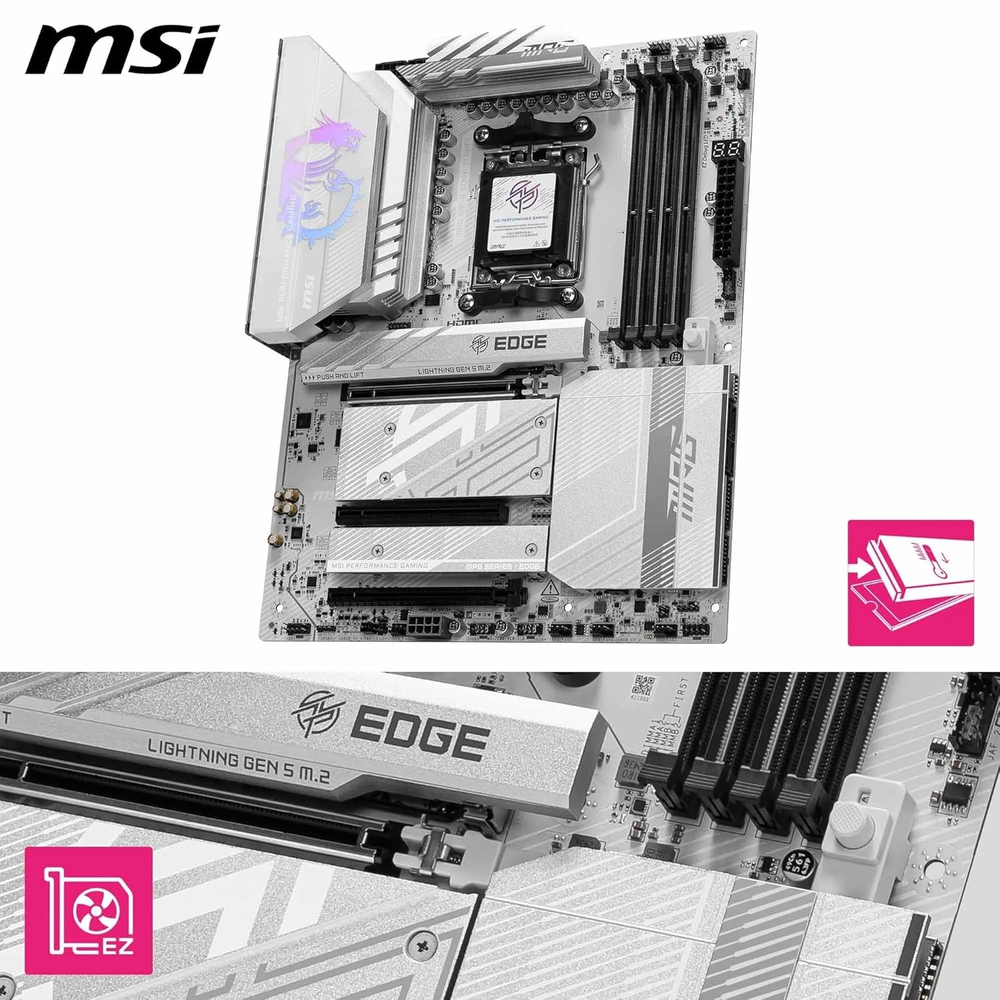

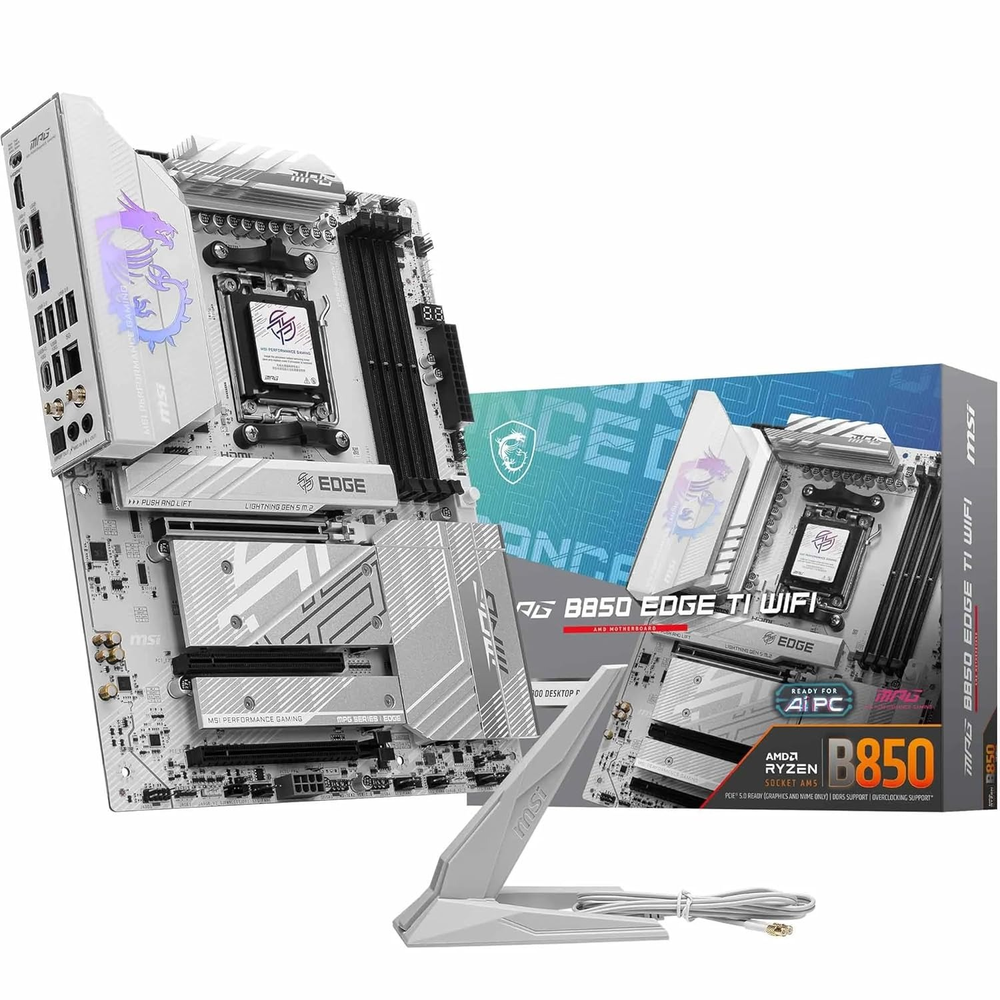

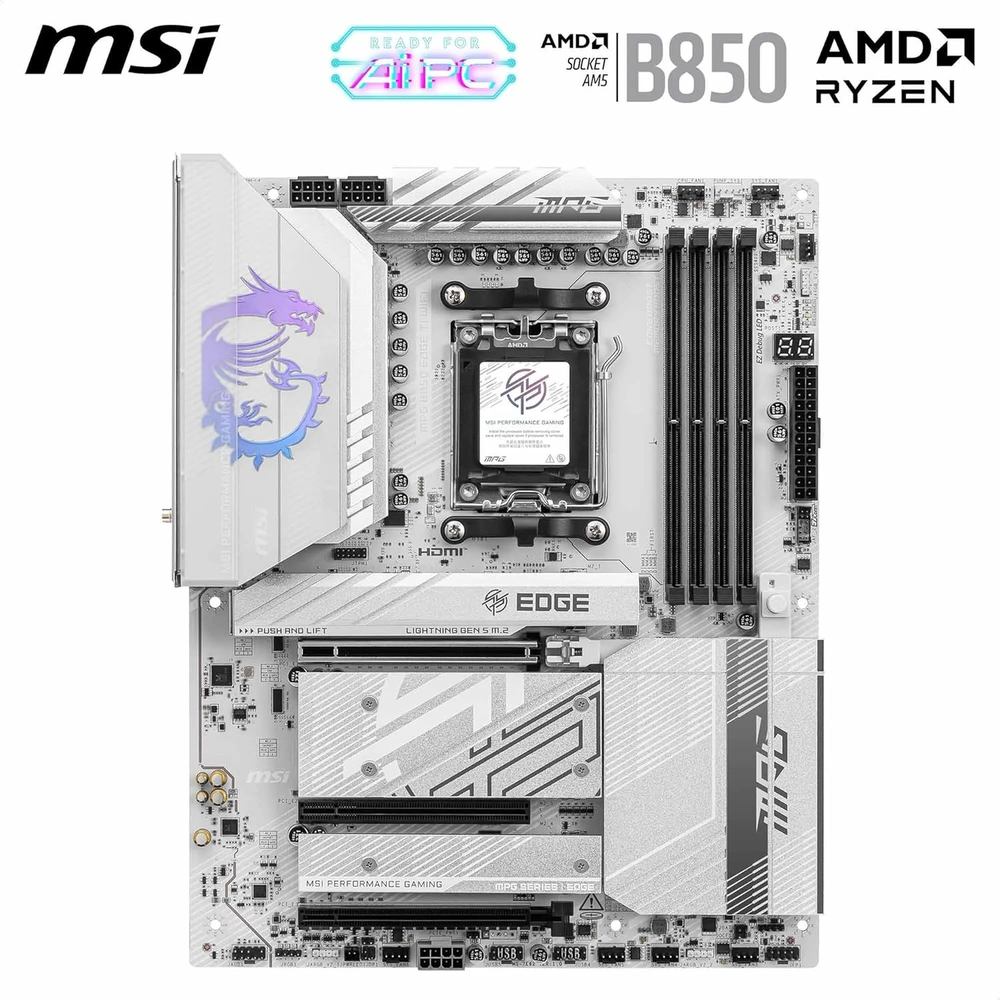

MSI MPG B850 EDGE TI WIFI Motherboard

MSI MPG B850 EDGE TI WIFI Motherboard

AMD B850 ATX White Series — 14+2+1 Phase VRM, 80A SPS, Full-Speed Wi-Fi 7, 5G LAN, USB 20Gbps, Dual PCIe 5.0 M.2 Gen5, DDR5 8400+ OC, Supplemental PCIe Power, Ryzen...

Rs. 47,999.00
Rs. 47,999.00
OFF Sold out
Tax included. Shipping calculated at checkout.

Vendor:

MSI

Type:

Motherboard

Estimated deliver 5-7 days

People are viewing this right now

View full details
Let us know abour your query!
Description
Reviews

AMD B850 ATX White Series — 14+2+1 Phase VRM, 80A SPS, Full-Speed Wi-Fi 7, 5G LAN, USB 20Gbps, Dual PCIe 5.0 M.2 Gen5, DDR5 8400+ OC, Supplemental PCIe Power, Ryzen 9000 / 8000 / 7000 Ready.

The MSI MPG B850 EDGE TI WIFI is the premium white-coloured flagship of the B850 ATX lineup — combining a 14+2+1 Duet Rail Power System with 80A Smart Power Stages (8-layer 2oz copper server-grade PCB) with an exceptional connectivity package. It features dual CPU-direct PCIe 5.0 x4 M.2 Gen5 slots, two PCIe 4.0 M.2 (Chipset), full-speed Wi-Fi 7 (320MHz, 5.8Gbps, MLO), 5G LAN, USB 20Gbps front Type-C, and a Supplemental PCIe Power header. Note: USB 20Gbps Type-C on rear and M.2_2 (PCIe 5.0) share bandwidth — each runs at PCIe 4.0 x4 / PCIe 5.0 x2 when both are active.

    >CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5 >Power Delivery: 14+2+1 Duet Rail Power System, 80A Smart Power Stages, dual 8-pin CPU connectors, Supplemental PCIe Power (8-pin), Core Boost, Memory Boost, 8-layer 2oz copper server-grade PCB, 7W/mK MOSFET Thermal Pads >Storage: 4x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 5.0 x4 (CPU, 2280/2260)*; M.2_3 & M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G — EZ M.2 Shield Frozr II, EZ M.2 Clip II (*shared bandwidth with rear USB 20Gbps Type-C) >Connectivity: Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4, Realtek RTL8126 5G LAN >USB: Rear — 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 3x USB 5Gbps Type-A, 4x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0 >PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset) — Steel Armor II, EZ PCIe Release >Audio: Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, up to 32-bit/384kHz
Specification Details
Chipset AMD B850
Socket AM5

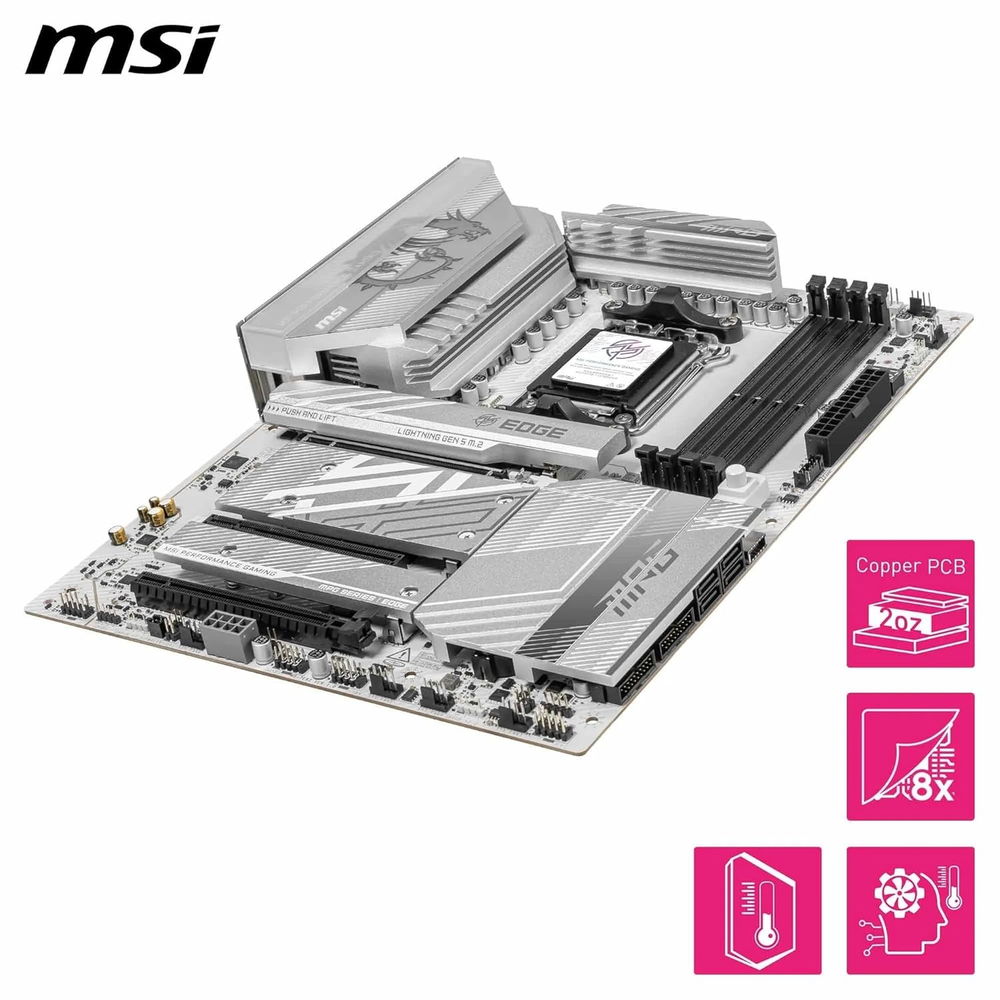

Form Factor ATX (304.8 x 243.84 mm), 8-layer 2oz copper server-grade PCB
Memory 4x DDR5 UDIMM, up to 256GB; DDR5 8400–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8400+ MT/s / 1DPC 2R max 6400+ MT/s / 2DPC max 6400+ MT/s OC; Single-sided latches
Memory Standard AMD EXPO, A-XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered
PCIe Slots PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset) — Steel Armor II

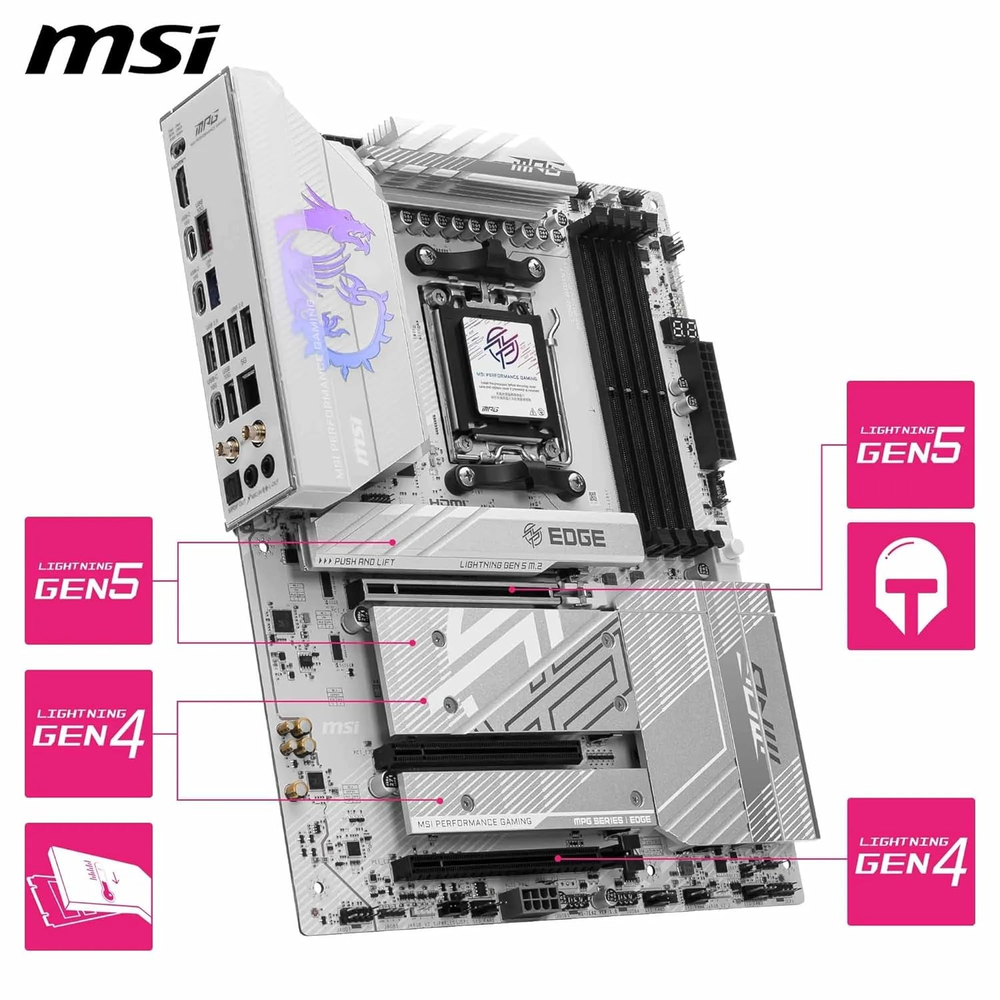

M.2 Slots M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 5.0 x4 CPU (2280/2260, shared BW w/ USB 20Gbps rear); M.2_3 & M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); EZ M.2 Shield Frozr II, EZ M.2 Clip II
SATA 4x SATA 6G | RAID 0, 1, 10; M.2 NVMe RAID 0, 1, 10
LAN Realtek RTL8126 5G LAN
Wireless Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4

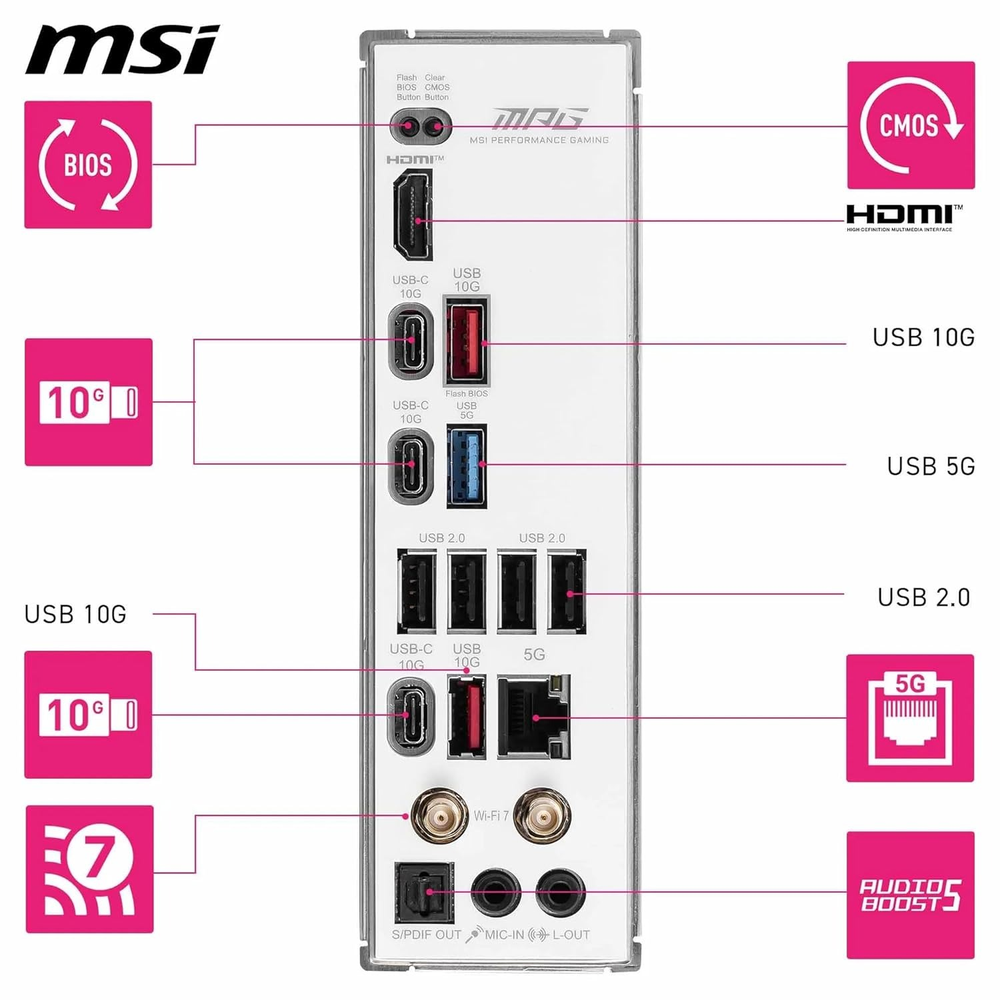

Rear USB 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 3x USB 5Gbps Type-A, 4x USB 2.0
Front USB Headers 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0
Video Output 1x HDMI 2.1 (8K@60Hz) — iGPU only
Audio Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, 32-bit/384kHz
Fan Headers 1x CPU Fan, 1x Combo Fan (Pump/Sys), 6x System Fan, Smart Fan 6
RGB 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED, 1x EZ Memory Detection LED
Color Scheme White / Silver — ideal for white PC builds
Extras EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Conn header, EZ Antenna, Supplemental PCIe Power (8-pin), Flash BIOS Button, Click BIOS 5, metal backplate
OS Support Windows 11 64-bit
