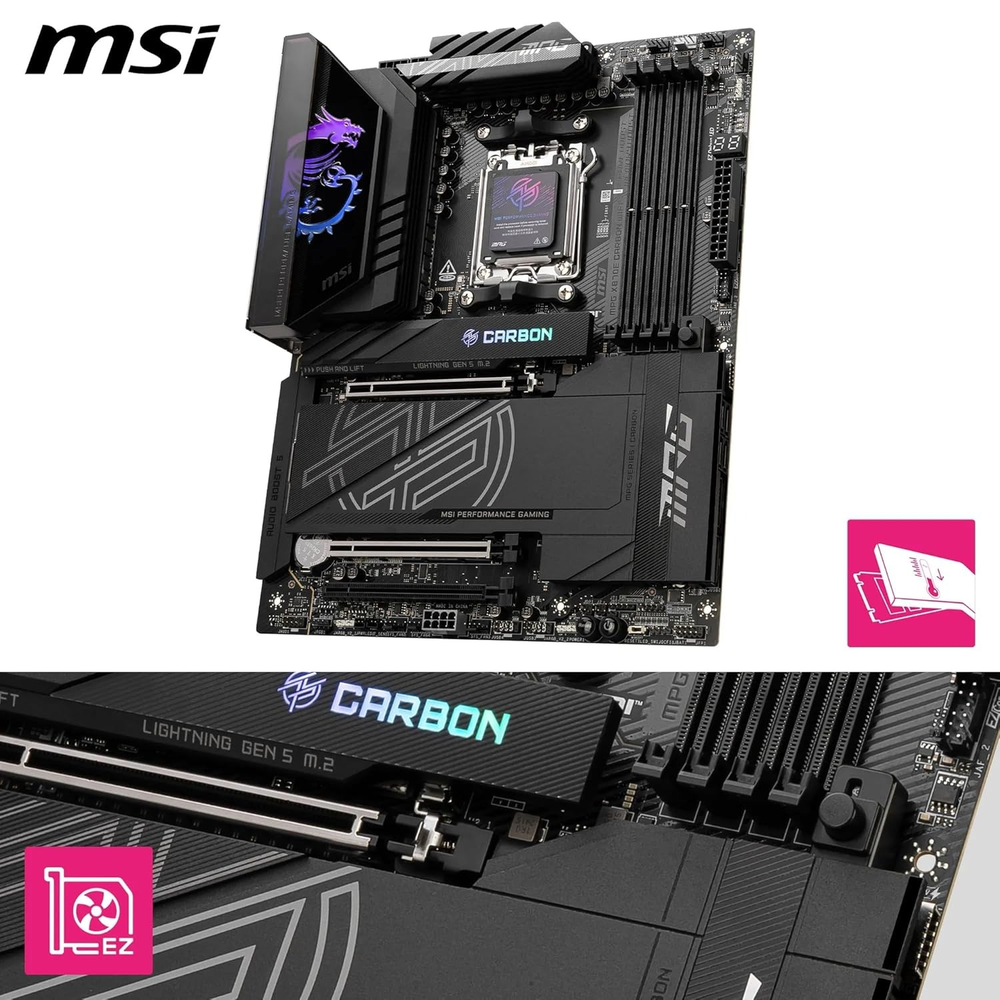

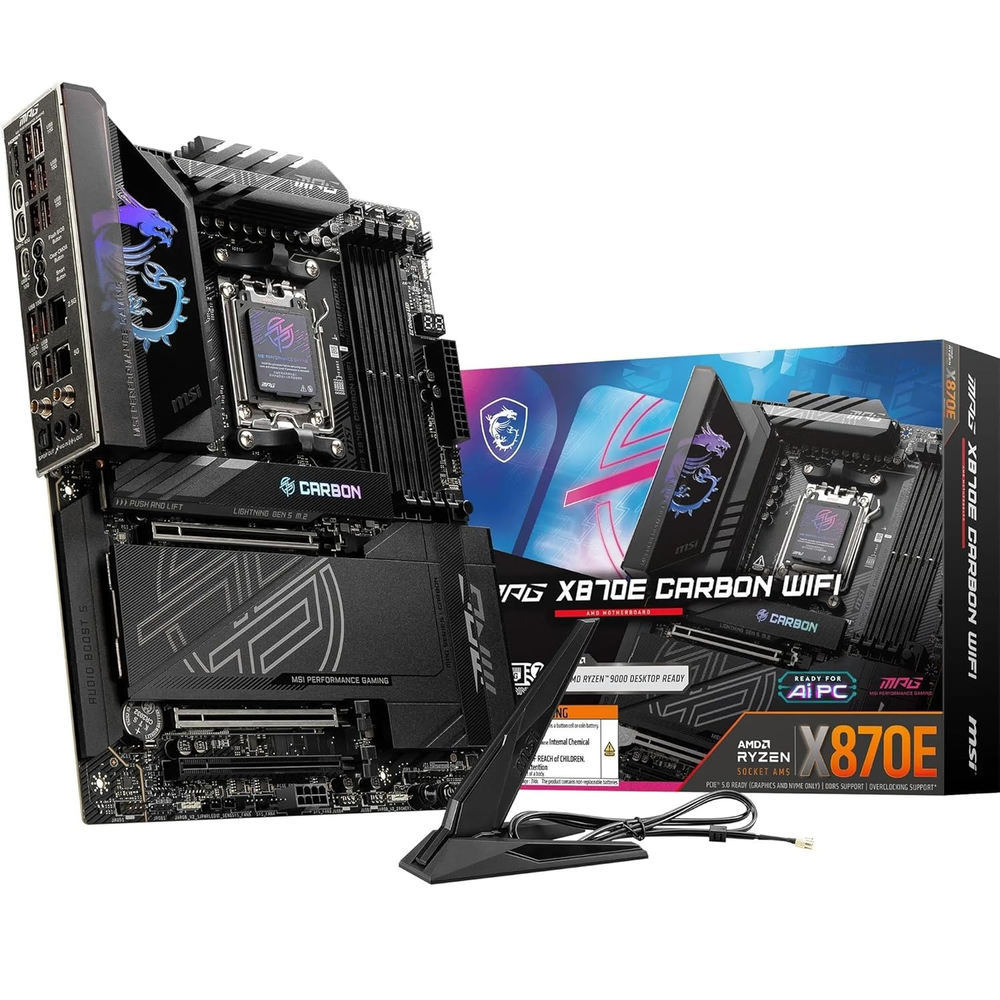

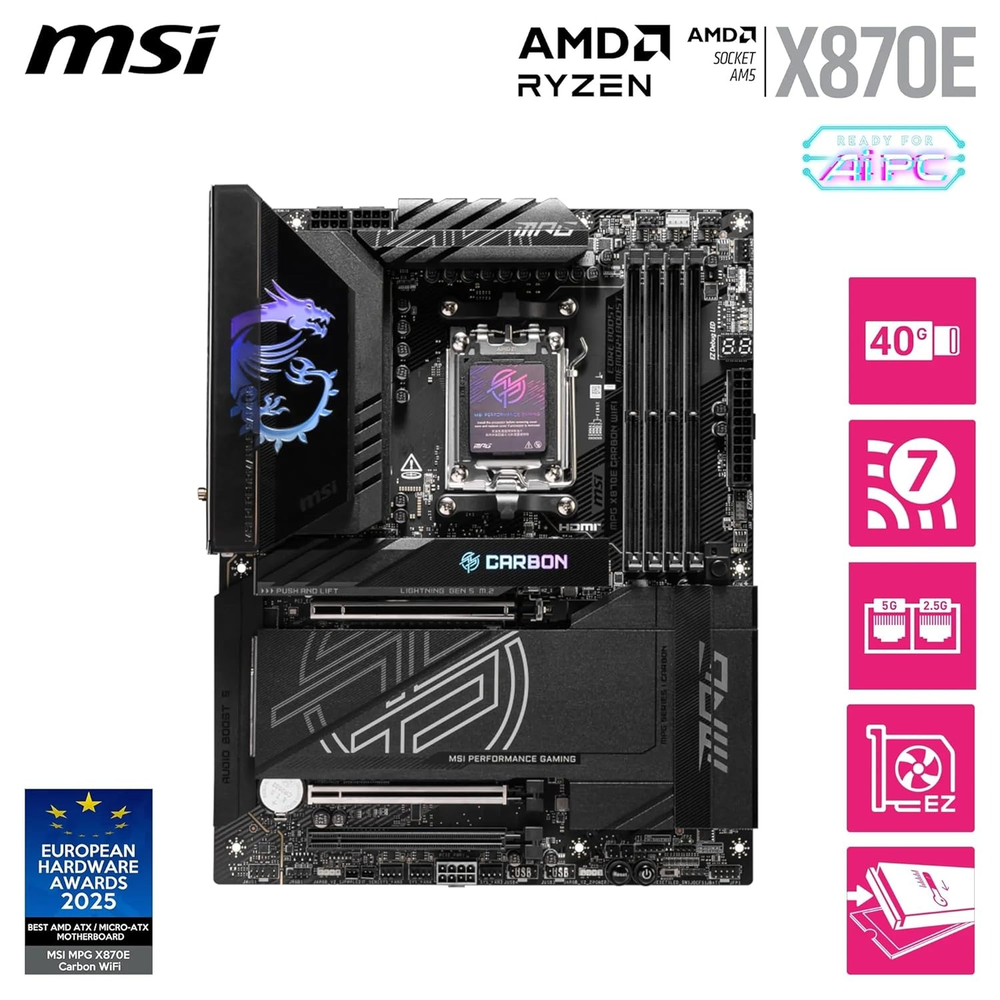

MSI MPG X870E CARBON WIFI Motherboard
Technical specification
AMD X870E ATX Flagship — 18+2+1 Phase VRM, 110A Power Stages, Wi-Fi 7, 5G + 2.5G Dual LAN, USB 40Gbps, Dual PCIe 5.0 M.2, DDR5 8400+ OC, Ryzen 9000 / 8000 / 7000 Ready.
The MSI MPG X870E CARBON WIFI is a premium ATX board dressed in carbon black with Mystic Light RGB, and engineered for serious AMD AM5 builds. Its 18+2+1 Duet Rail Power System with 110A Smart Power Stages on dual 8-pin connectors provides rock-solid VRM headroom for Ryzen 9000 overclocking. Add to that triple PCIe 5.0 expansion slots, dual CPU-direct PCIe 5.0 M.2 slots, USB 40Gbps Type-C, 5G + 2.5G dual Realtek LAN, Wi-Fi 7 (Qualcomm), and a full suite of MSI EZ DIY features — this is one of the most well-equipped X870E ATX boards available.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 18+2+1 Duet Rail Power System, 110A Smart Power Stages, dual 8-pin CPU connectors, Core Boost, Memory Boost, 8-layer 2oz copper server-grade PCB, supplemental PCIe power connector
>Storage: 4x M.2 — M.2_1 & M.2_2: PCIe 5.0 x4 (CPU direct, 2280/2260); M.2_3: PCIe 4.0 x4 (Chipset, 22110/2280); M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G — M.2 Shield Frozr
>Connectivity: Qualcomm Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4, Realtek 5G LAN + Realtek 2.5G LAN (dual LAN)
>USB: Rear — 2x USB4 40Gbps Type-C (DP 1.4), 2x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 2x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C (27W PD), 4x USB 2.0
>PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 5.0 x16 slot (x4 mode, CPU); PCI_E3: PCIe 4.0 x16 slot (x4 mode, Chipset) — EZ PCIe Release
>Audio: Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, up to 32-bit/384kHz
| Specification | Details |
|---|---|
| Chipset | AMD X870E |
| Socket | AM5 |

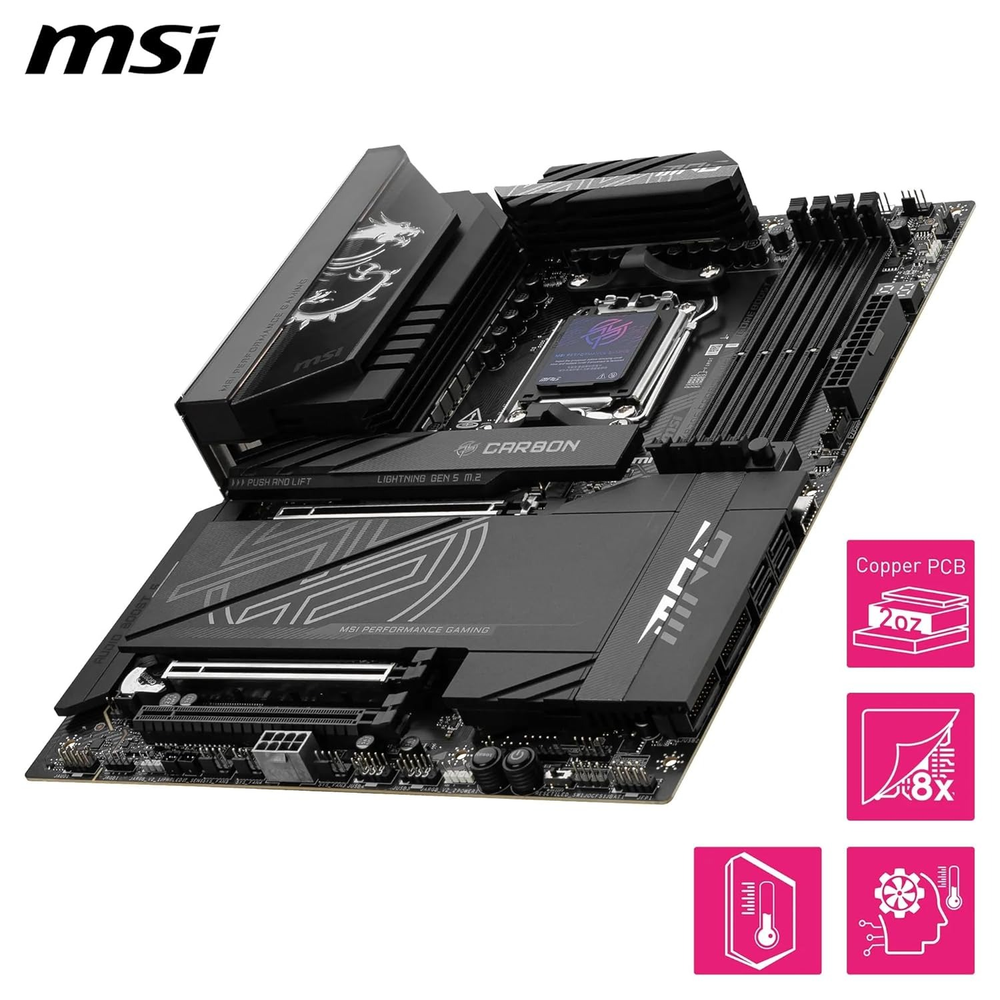

| Form Factor | ATX (305 x 244 mm), 8-layer 2oz copper server-grade PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 9000–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8400+ MT/s OC |
| Memory Standard | AMD EXPO, XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered, High-Efficiency Mode |

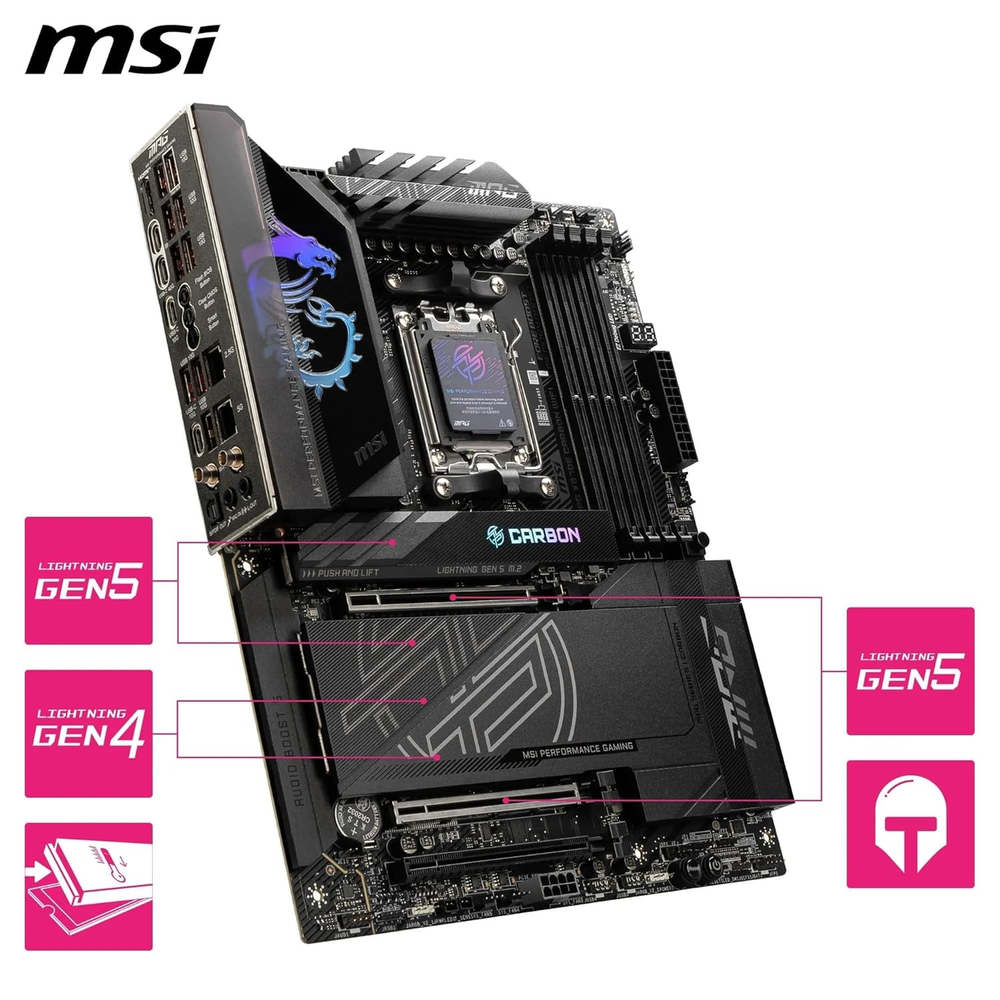

| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 5.0 x16 slot (x4 bandwidth, CPU); PCI_E3: PCIe 4.0 x16 slot (x4 bandwidth, Chipset) |
| M.2 Slots | M.2_1 & M.2_2: PCIe 5.0 x4 (CPU, 2280/2260); M.2_3: PCIe 4.0 x4 (Chipset, 22110/2280); M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); M.2 Shield Frozr |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8126 5G LAN + Realtek RTL8125BG 2.5G LAN (Dual LAN) |
| Wireless | Qualcomm Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4 |
| USB4 / 40Gbps | 2x USB4 40Gbps Type-C (Rear, DP 1.4) |

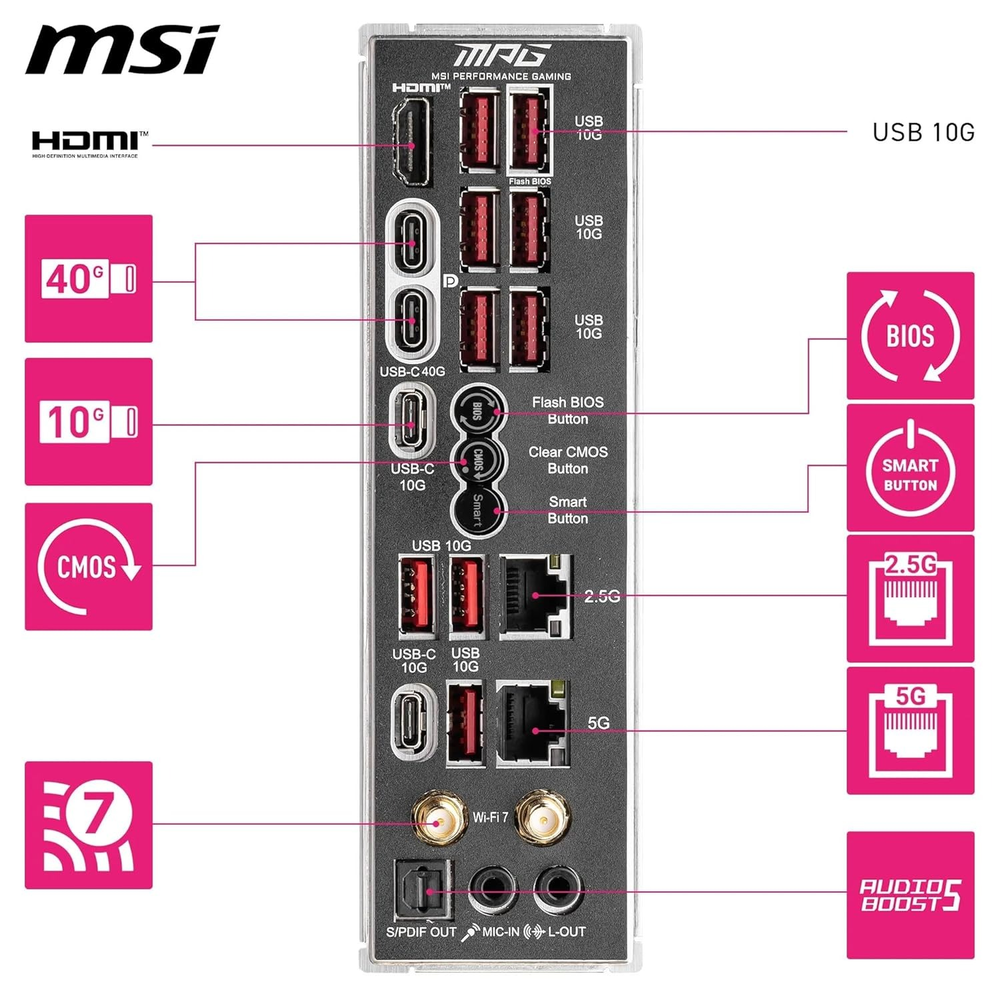

| Rear USB | 2x USB4 40Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 2x USB 2.0 |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C (27W PD), 4x USB 2.0 |
| Audio | Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, 32-bit/384kHz |
| Fan Headers | 1x CPU Fan, 2x Pump Fan, 6x System Fan, Smart Fan 6 / Frozr AI Control |
| RGB | 3x ARGB V2 headers, 2x RGB headers, 4x EZ Debug LED, Mystic Light RGB |
| Extras | EZ M.2 Clip, EZ PCIe Release, EZ LED Control, Supplemental PCIe Power Connector, Click BIOS 5, metal backplate |
| OS Support | Windows 11 / 10 64-bit |
