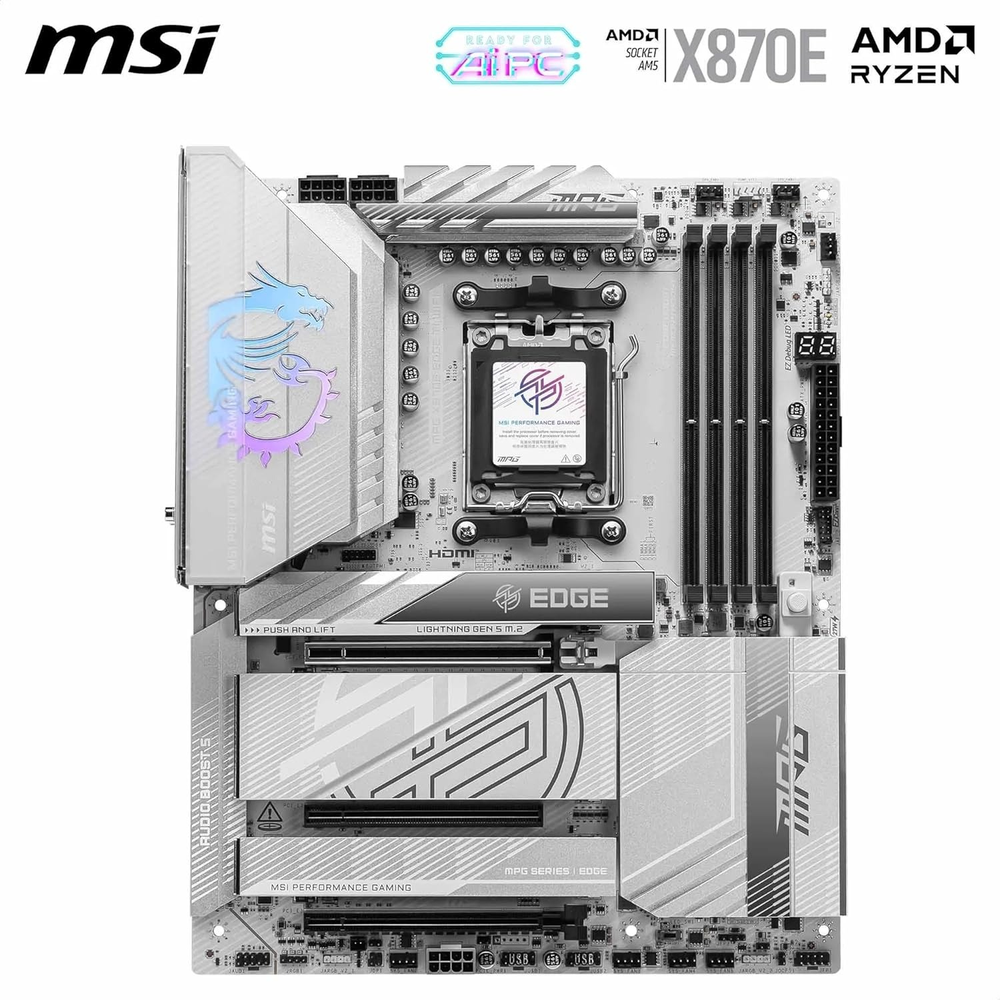

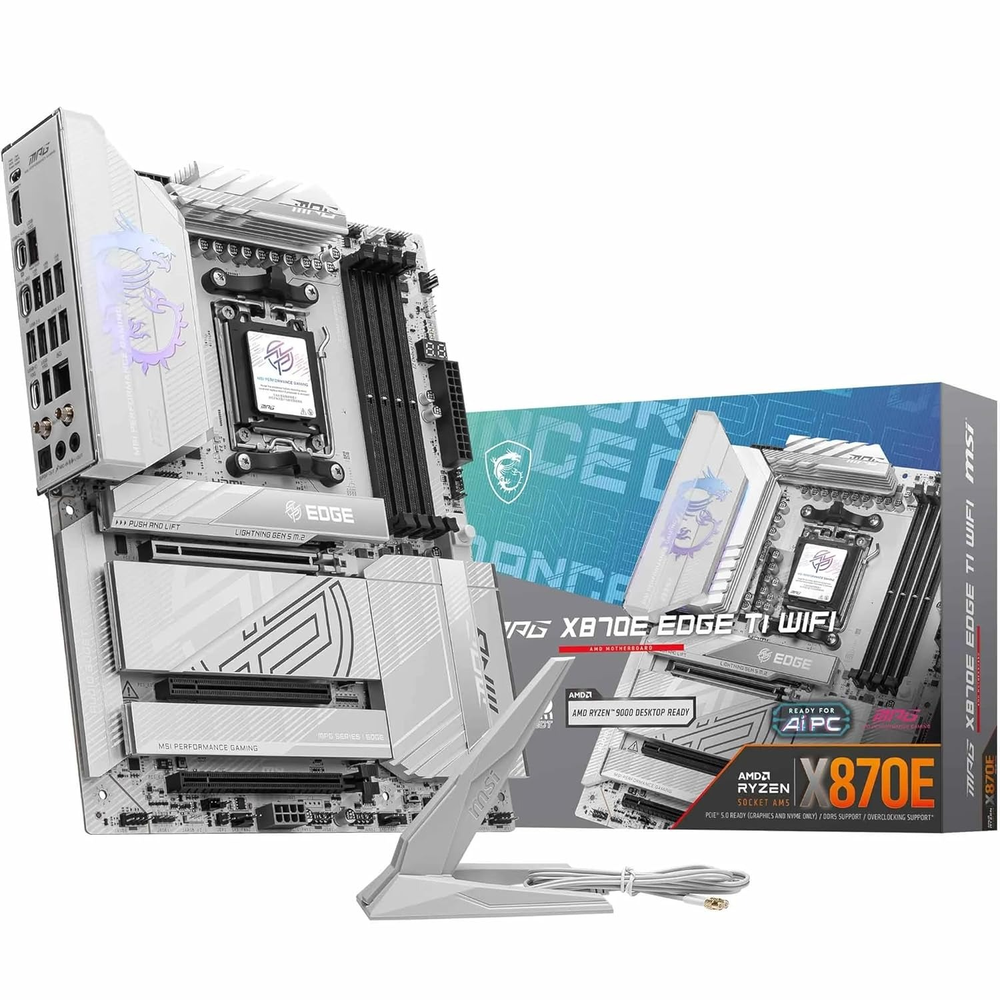

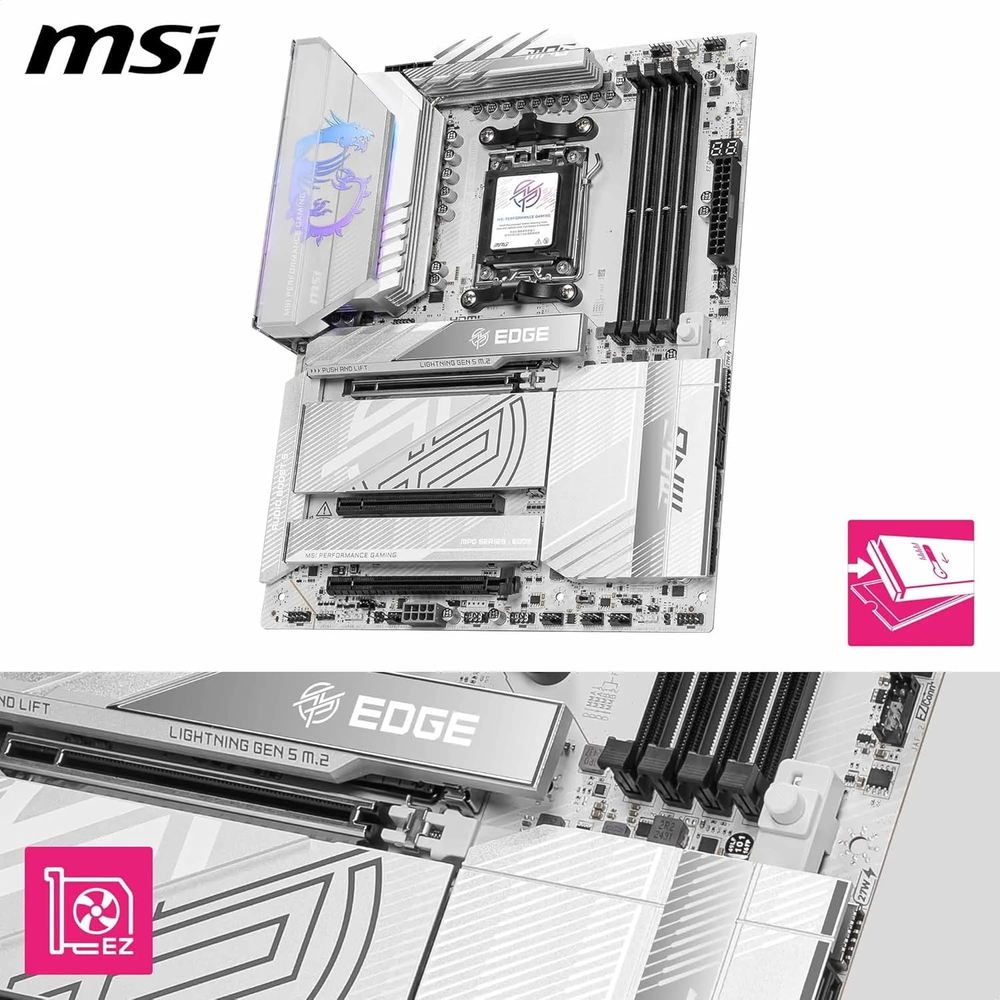

MSI MPG X870E EDGE TI WIFI Motherboard

AMD X870E ATX White Series — 14+2+1 Phase VRM, Wi-Fi 7, 5G LAN, USB4 40Gbps, Dual PCIe 5.0 M.2, DDR5 8400+ OC, Supplemental PCIe Power, Ryzen 9000 / 8000 / 7000 Ready.

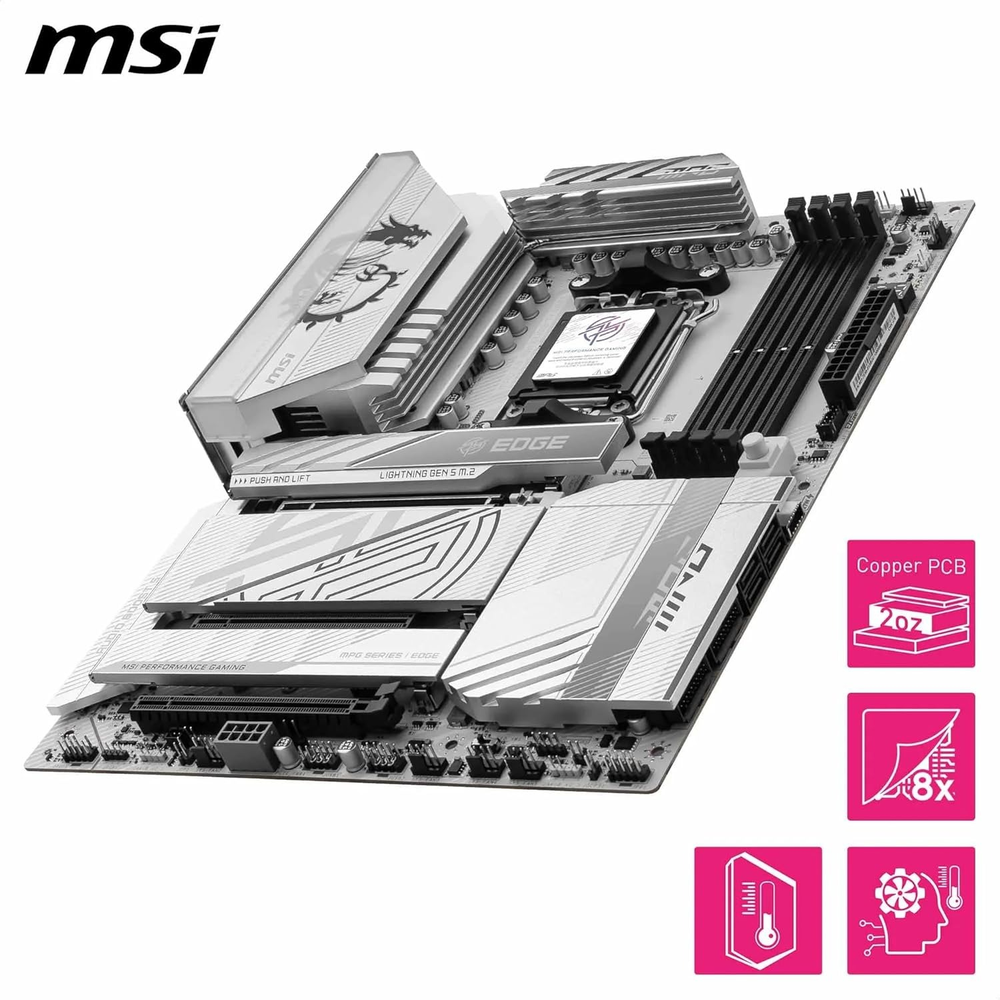

The MSI MPG X870E EDGE TI WIFI brings a sleek silver-white aesthetic to the high-end X870E platform — ideal for premium white PC builds. Built on a 14+2+1 Duet Rail Power System with dual 8-pin CPU connectors and 8-layer 2oz copper PCB, it pairs Wi-Fi 7 (Qualcomm), 5G LAN, USB4 40Gbps, and dual CPU-direct PCIe 5.0 M.2 slots with a front USB-C 27W PD header and Supplemental PCIe Power connector. Note: USB4 40Gbps and M.2_2 (PCIe 5.0 x4) share bandwidth — both run at x2 when used simultaneously, with BIOS toggle to prioritize M.2_2 at full x4 speed.

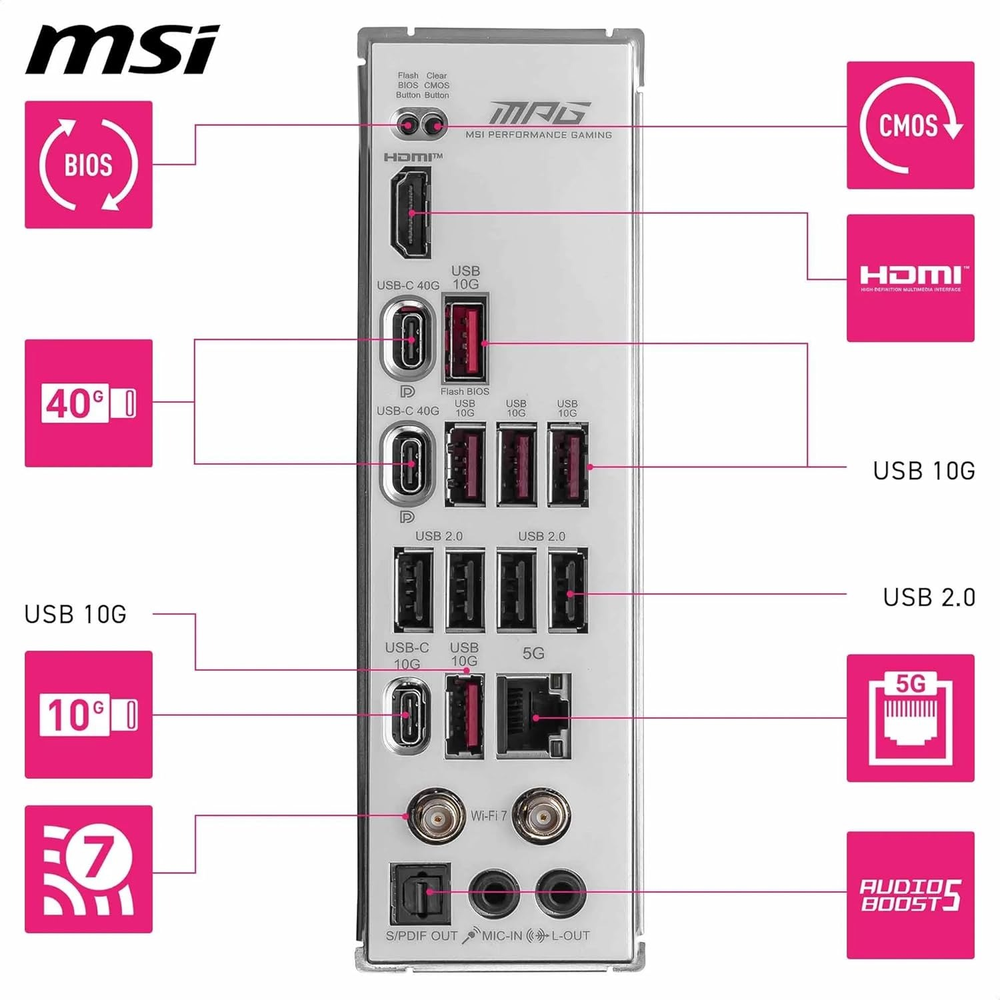

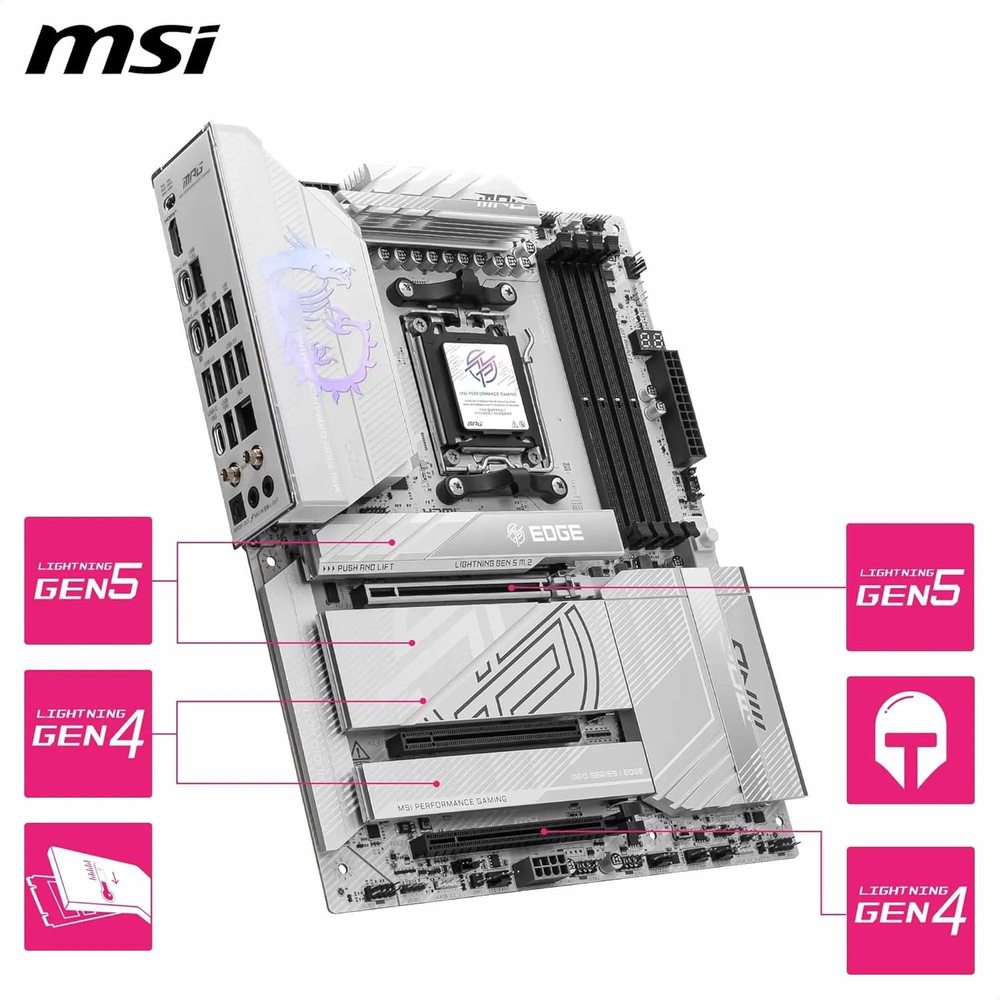

>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5 >Power Delivery: 14+2+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, Memory Boost, 8-layer 2oz copper server-grade PCB, Supplemental PCIe Power Connector >Storage: 4x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 22110/2280); M.2_2: PCIe 5.0 x4 (CPU, 2280/2260)*; M.2_3 & M.2_4: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G — M.2 Shield Frozr (*shared bandwidth with USB4, each at x2 when both active) >Connectivity: Qualcomm Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4, Realtek RTL8126 5G LAN >USB: Rear — 1x USB4 40Gbps Type-C (DP 1.4), 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C (27W PD), 4x USB 2.0 >PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset) — EZ PCIe Release >Audio: Realtek ALC4080, Audio Boost 5, 7.1-CH, S/PDIF, up to 32-bit/384kHz
