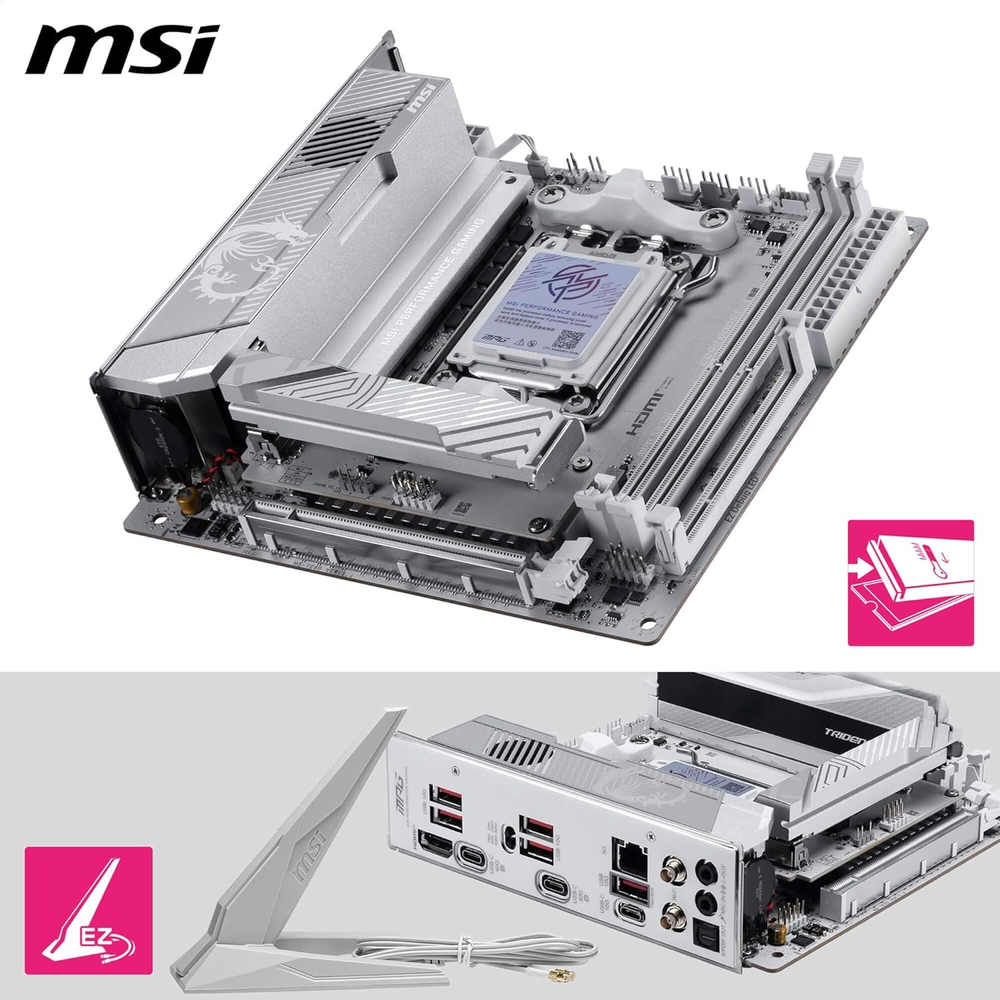

MSI MPG X870I EDGE TI EVO WIFI Motherboard
Technical specification
AMD X870 Mini-ITX Motherboard for AM5 — 8+2+1 Phase VRM, Wi-Fi 7, 5G LAN, Dual USB4 40Gbps, PCIe 5.0 x16 + PCIe 5.0 M.2, DDR5 10000+ OC, 5-in-1 XPANDER Card, Ryzen 9000 / 8000 / 7000 Ready.

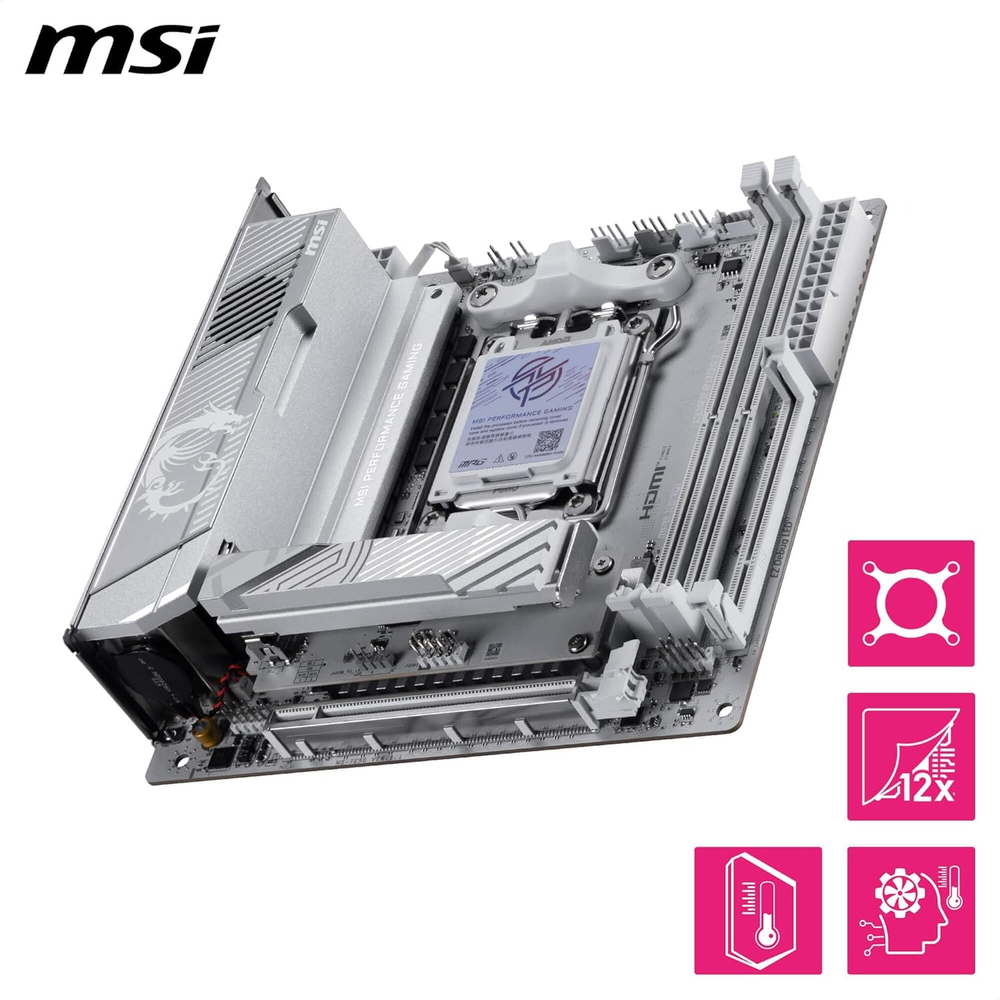

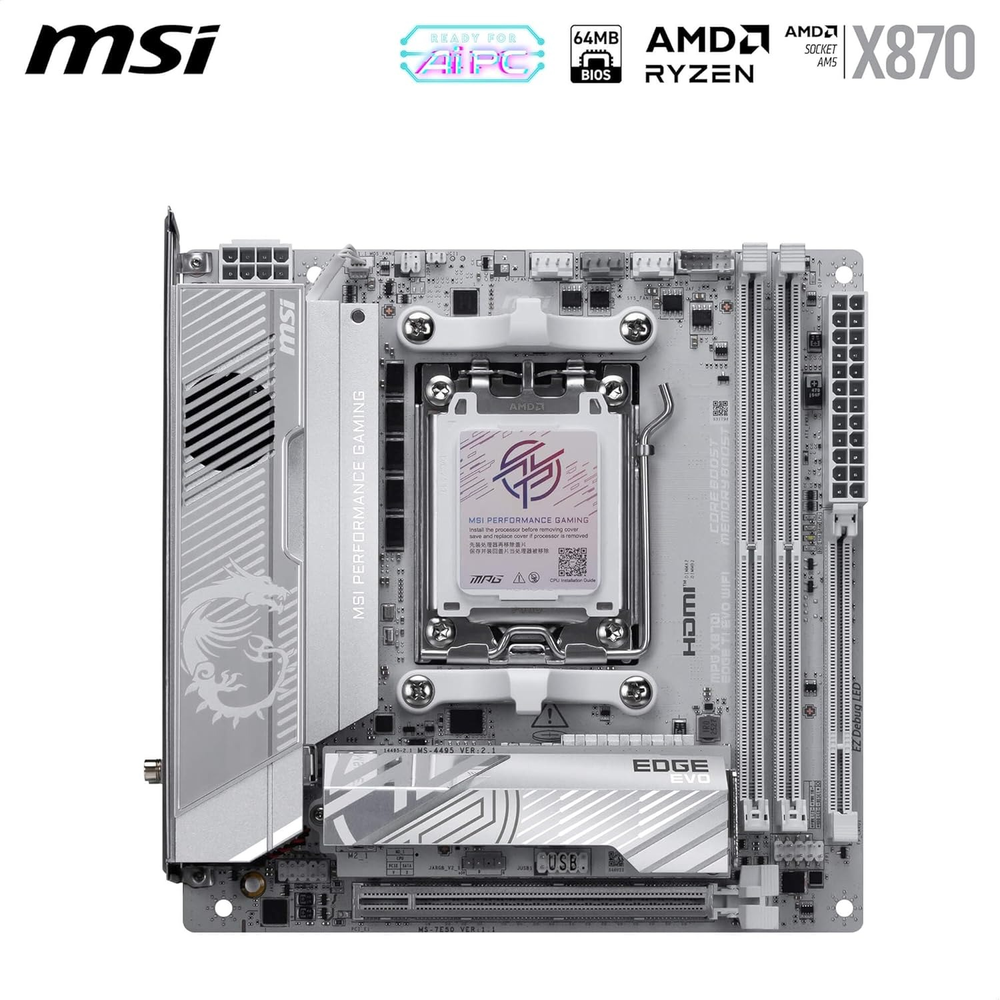

The MSI MPG X870I EDGE TI EVO WIFI packs a remarkable amount of power into a 170 x 170mm Mini-ITX footprint. Built on AMD X870 with a single PCIe 5.0 x16 slot, three M.2 slots (one PCIe 5.0 CPU-direct + two PCIe 4.0 via Chipset on the included 5-in-1 XPANDER Card), dual USB4 40Gbps Type-C, Wi-Fi 7 (320MHz, up to 5.8Gbps), 5G LAN, Realtek ALC4080 audio, and 8+2+1 Duet Rail power — this is arguably the most fully-featured Mini-ITX AM5 board available for compact high-performance builds.
- CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
- Power Delivery: 8+2+1 Duet Rail Power System, 1x 8-pin CPU connector, Core Boost, Memory Boost, 6-layer PCB
- Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280); M.2_2 & M.2_3: PCIe 4.0 x4 (Chipset, 2260/2280, single-sided only, via 5-in-1 XPANDER Card); 2x SATA 6G
- Connectivity: Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4, Realtek RTL8126 5G LAN
- USB: Rear — 2x USB4 40Gbps Type-C, 5x USB 10Gbps Type-A, 1x USB 10Gbps Type-C; Front — 2x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 2x USB 2.0
- PCIe: 1x PCIe 5.0 x16 (CPU); 1x FP card slot (5-in-1 XPANDER Card only)
- Audio: Realtek ALC4080, 7.1-CH, S/PDIF, up to 32-bit/384kHz
| Specification | Details |
|---|---|
| Chipset | AMD X870 |
| Socket | AM5 |
| Form Factor | Mini-ITX (170 x 170 mm), 6-layer PCB |
| Memory | 2x DDR5 UDIMM, up to 128GB; DDR5 10000–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8400+ MT/s | 1DPC 2R max 8000+ MT/s OC |
| Memory Standard | AMD EXPO, XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); 1x FP card slot (5-in-1 XPANDER Card, M.2_2 & M.2_3) |

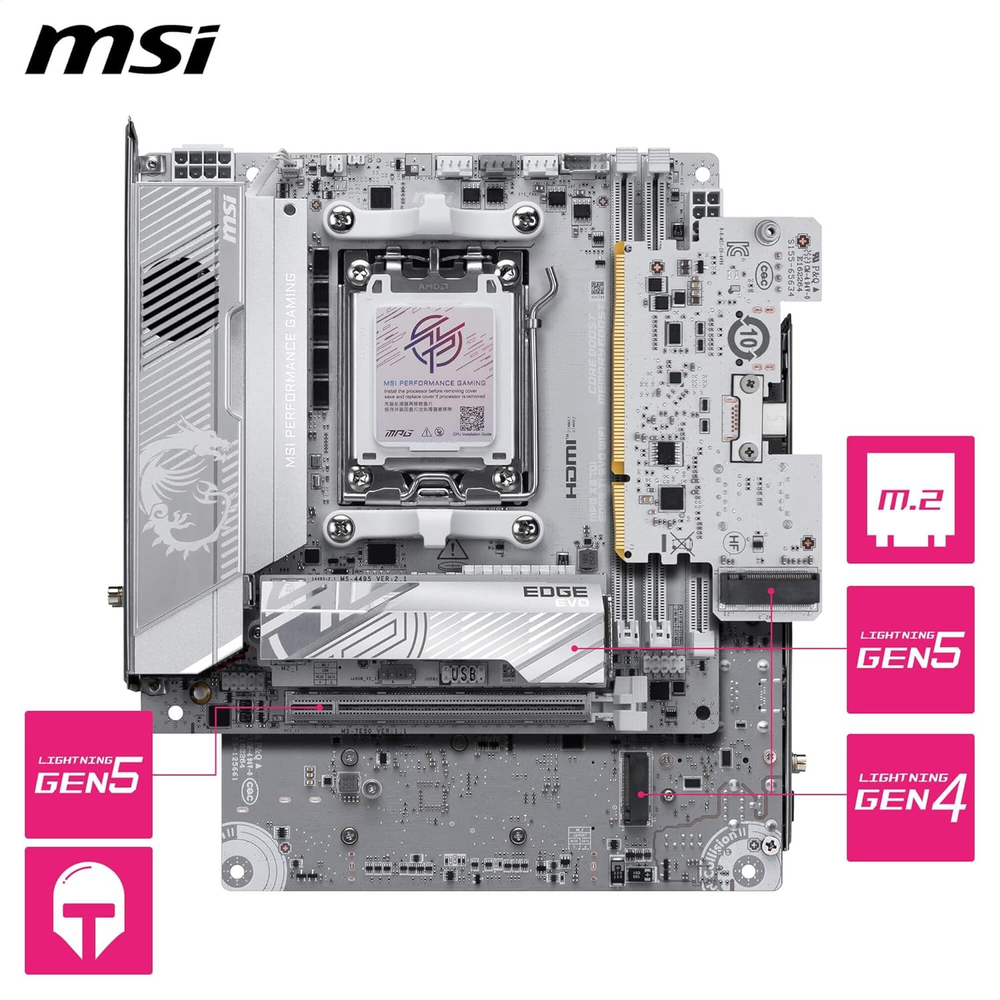

| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 2280); M.2_2: PCIe 4.0 x4 (Chipset, 2260/2280, single-sided, via XPANDER); M.2_3: PCIe 4.0 x4 (Chipset, 2260/2280, single-sided, via XPANDER) |
| SATA | 2x SATA 6G | RAID 0, 1; M.2 NVMe RAID 0, 1, 5 (Ryzen 9000 only) |
| LAN | Realtek RTL8126 5G LAN |
| Wireless | Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MU-MIMO, MLO, 4KQAM), Bluetooth 5.4 |
| USB4 / 40Gbps | 2x USB4 40Gbps Type-C (Rear) |

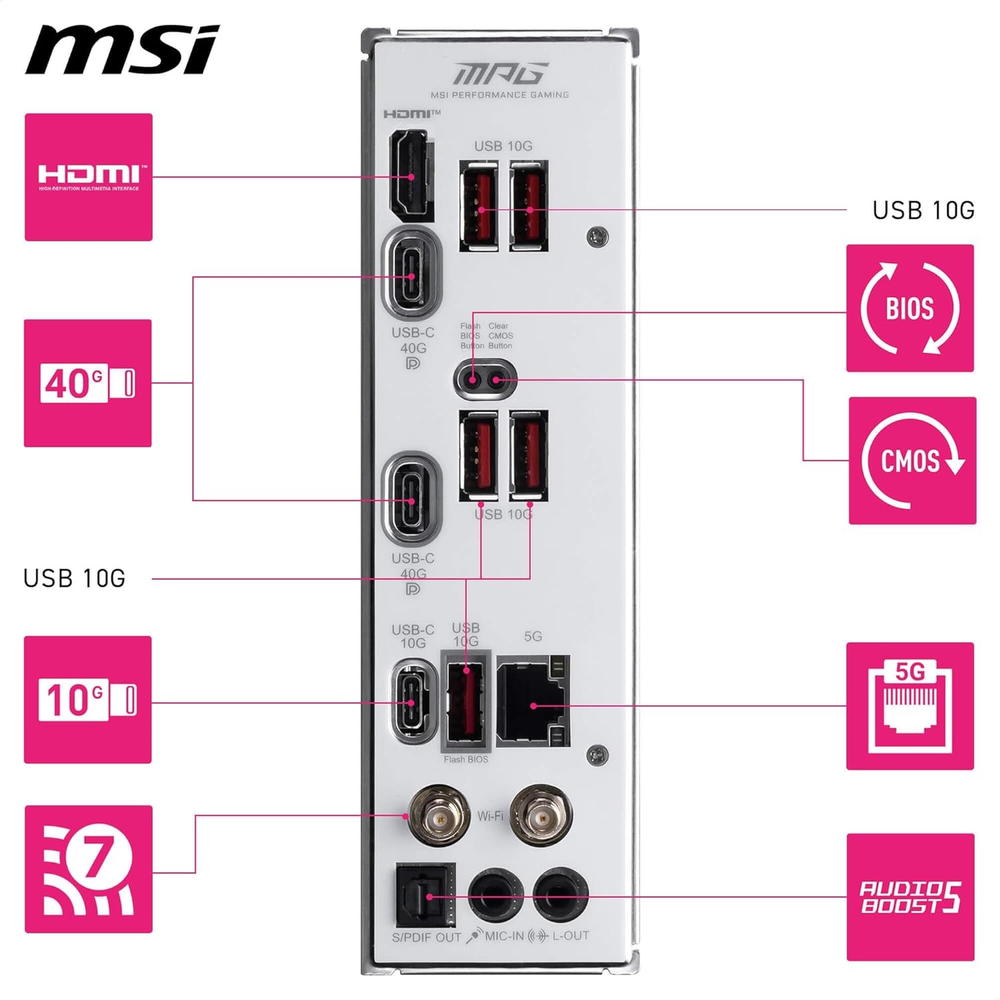

| Rear USB | 2x USB4 40Gbps Type-C, 5x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| Front USB Headers | 2x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 2x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 2x USB4 Type-C (DP via USB4) — iGPU only |
| Audio | Realtek ALC4080, 7.1-CH, S/PDIF Optical Out, 32-bit/384kHz |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/Sys), 1x System Fan |
| RGB | 1x ARGB V2 header, 4x EZ Debug LED |

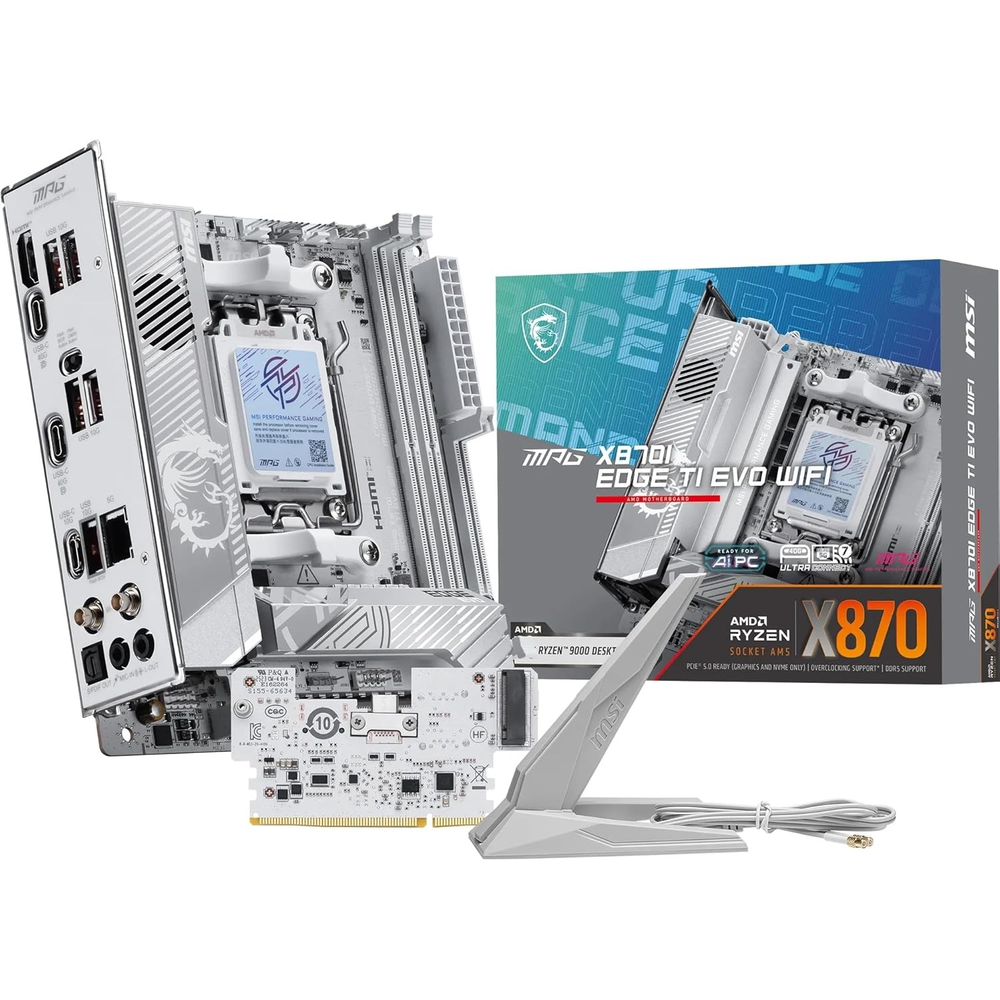

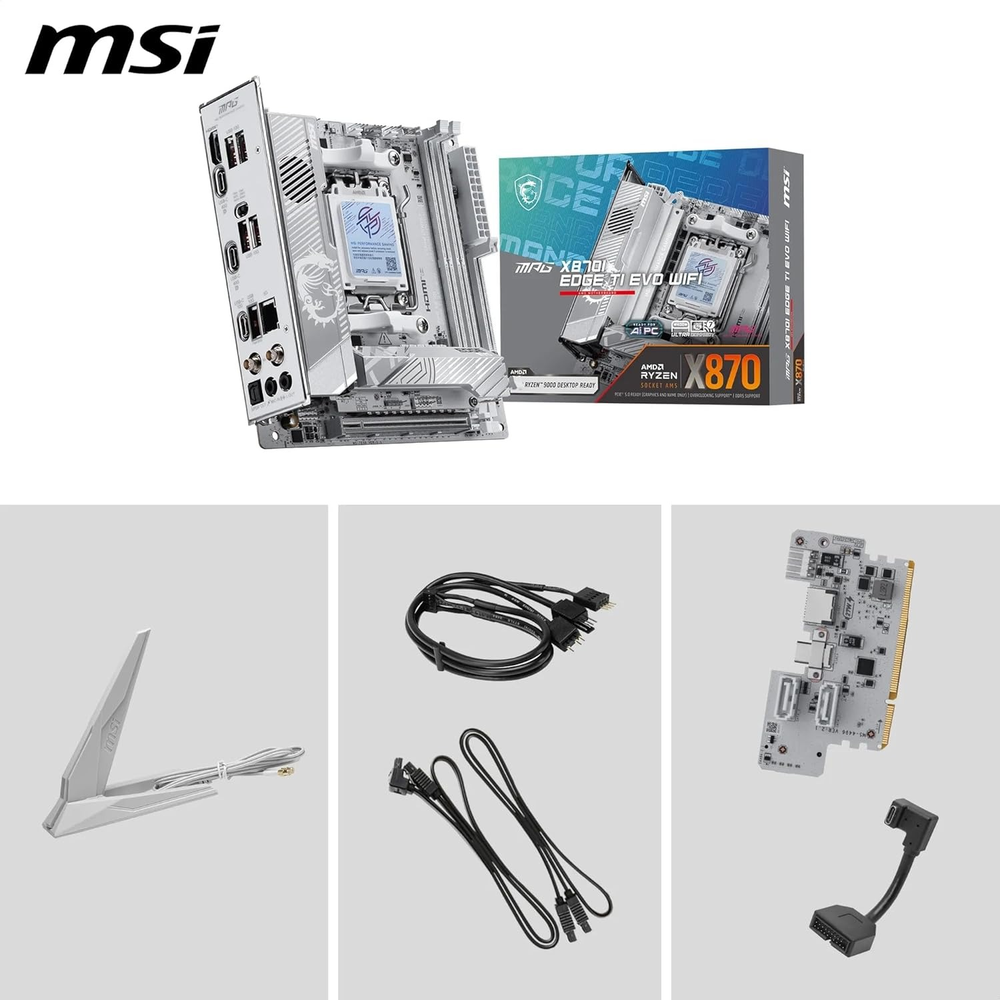

| Included Accessories | 5-in-1 XPANDER Card (2x additional M.2 + SATA expansion) |
| Extras | Flash BIOS Button, Clear CMOS Button, Click BIOS 5, EZ Conn header |
| OS Support | Windows 11 64-bit |
