Motherboard // MSI

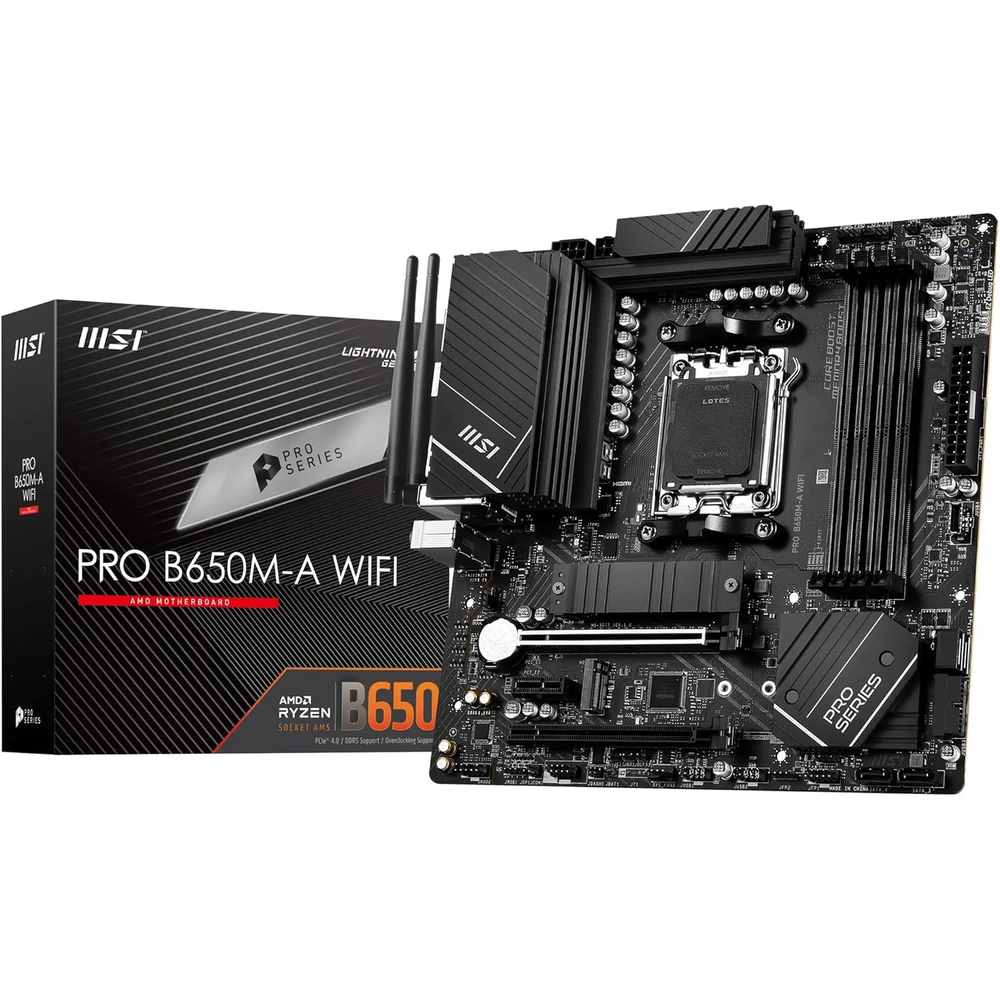

MSI PRO B650M-A WIFI Motherboard
Technical specification
AMD B650 mATX Motherboard for AM5 — 8+2+1 Duet Rail Power System, 55A DrMOS, 6-layer 2oz copper PCB, Wi-Fi 6E (160MHz), 2.5G LAN, USB 10Gbps Front Type-C, Dual PCIe 4.0 M.2, DDR5 7200+ OC, Steel Armor PCIe, Ryzen 9000 / 8000 / 7000 Ready.
The MSI PRO B650M-A WIFI is the reliable mid-range mATX workhorse on AMD B650 — blending business-grade reliability with gaming-ready performance. It sports an 8+2+1 Duet Rail Power System with 55A DrMOS on a 6-layer 2oz copper PCB, AMD Wi-Fi 6E (160MHz, BT 5.2), Realtek 2.5G LAN, front USB 10Gbps Type-C, dual PCIe 4.0 x4 CPU M.2 with M.2 Shield Frozr, and Steel Armor PCIe x16 slot — offering excellent value and solid performance for Ryzen 9000 builds that need dependable connectivity.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 8+2+1 Duet Rail Power System, 55A DrMOS, 1x 8-pin + 1x 4-pin CPU connectors, Core Boost, Memory Boost, 6-layer 2oz copper PCB, 7W/mK MOSFET thermal pads
>Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260; unavailable Ryzen 8500/8300); 4x SATA 6G — M.2 Shield Frozr
>Connectivity: AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.2, Realtek RTL8125BG 2.5G LAN
>USB: Rear — 4x USB 5Gbps Type-A, 4x USB 10Gbps Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor, x8 Ryzen 8700/8600/8400, x4 Ryzen 8500/8300); PCI_E2: PCIe 3.0 x4 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | mATX (243.84 x 243.84 mm), 6-layer 2oz copper PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 7200+(OC) / 4800(JEDEC) MHz; 1DPC 1R max 7200+ MHz / 1DPC 2R max 6000+ MHz / 2DPC 1R max 6000+ MHz / 2DPC 2R max 5400+ MHz OC |
| Memory Standard | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 3.0 x4 (Chipset) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260) — M.2 Shield Frozr; No PCIe 5.0 M.2 |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | AMD Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.2, M.2 Key-E slot |
| Rear USB | 4x USB 5Gbps Type-A, 4x USB 10Gbps Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Video Output | 1x HDMI 2.1 + 1x DisplayPort 1.4 — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 3x System Fan, Smart Fan 6 |
| RGB | 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| Extras | M.2 Shield Frozr (both slots), Steel Armor PCIe, EZ M.2 Clip, EZ Antenna, Flash BIOS Button, Click BIOS 5, MSI Center, TPM 2.0, metal backplate |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
