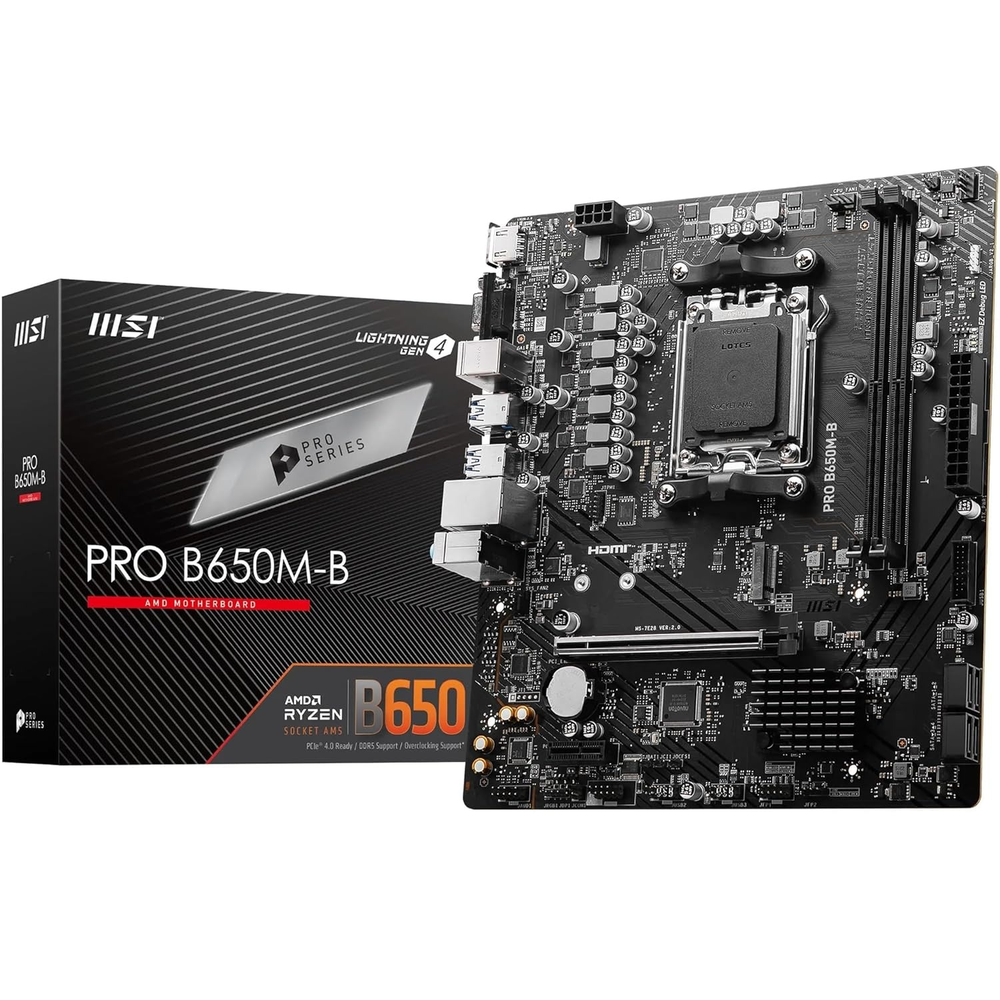

MSI PRO B650M-B Motherboard
Technical specification
AMD B650 mATX Motherboard for AM5 — No Wi-Fi, 2x DDR5 up to 128GB, DDR5 6800+ OC, 2.5G LAN, 1x PCIe 4.0 M.2, 4x SATA, HDMI 2.1 + VGA, USB 5Gbps, EZ Debug LED, Ryzen 9000 / 8000 / 7000 Ready.
The MSI PRO B650M-B is the absolute entry-level AM5 B650 mATX — stripped to the essentials for no-frills budget builds. It features Core Boost VRM, AMD EXPO DDR5 up to 6800+ MT/s, Realtek 2.5G LAN, 1x PCIe 4.0 x4 CPU M.2, 4x SATA 6G, dual video output (HDMI 2.1 + VGA), EZ Debug LED, Audio Boost 7.1-CH, and Flash BIOS — everything needed for a reliable, low-cost Ryzen 9000/8000/7000 build without any extras.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector, SMT welding
>Storage: 1x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); 4x SATA 6G | RAID 0, 1, 10
>Connectivity: No Wi-Fi; Realtek RTL8125BG 2.5G LAN
>USB: Rear — 2x USB 2.0, 4x USB 5Gbps Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Type-A
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU, x8 Ryzen 8700/8600/8400, x4 Ryzen 8500/8300); PCI_E2: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | mATX (215 x 243.84 mm) |
| Memory | 2x DDR5 UDIMM, up to 128GB; DDR5 6800+(OC) / 4800(JEDEC) MHz; 1DPC 1R max 6800+ MHz / 1DPC 2R max 6000+ MHz |
| Memory Standard | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 2280/2260) — 1 slot only |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN (no Wi-Fi) |
| Wireless | None |
| Rear USB | 2x USB 2.0, 4x USB 5Gbps Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Type-A |
| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x VGA (1920x1200@60Hz) — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| RGB | 1x ARGB V2 header, 1x RGB header, 4x EZ Debug LED |
| Extras | Click BIOS 5, TPM 2.0, COM port header (JCOM), Chassis Intrusion header, metal backplate |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
