Motherboard // MSI

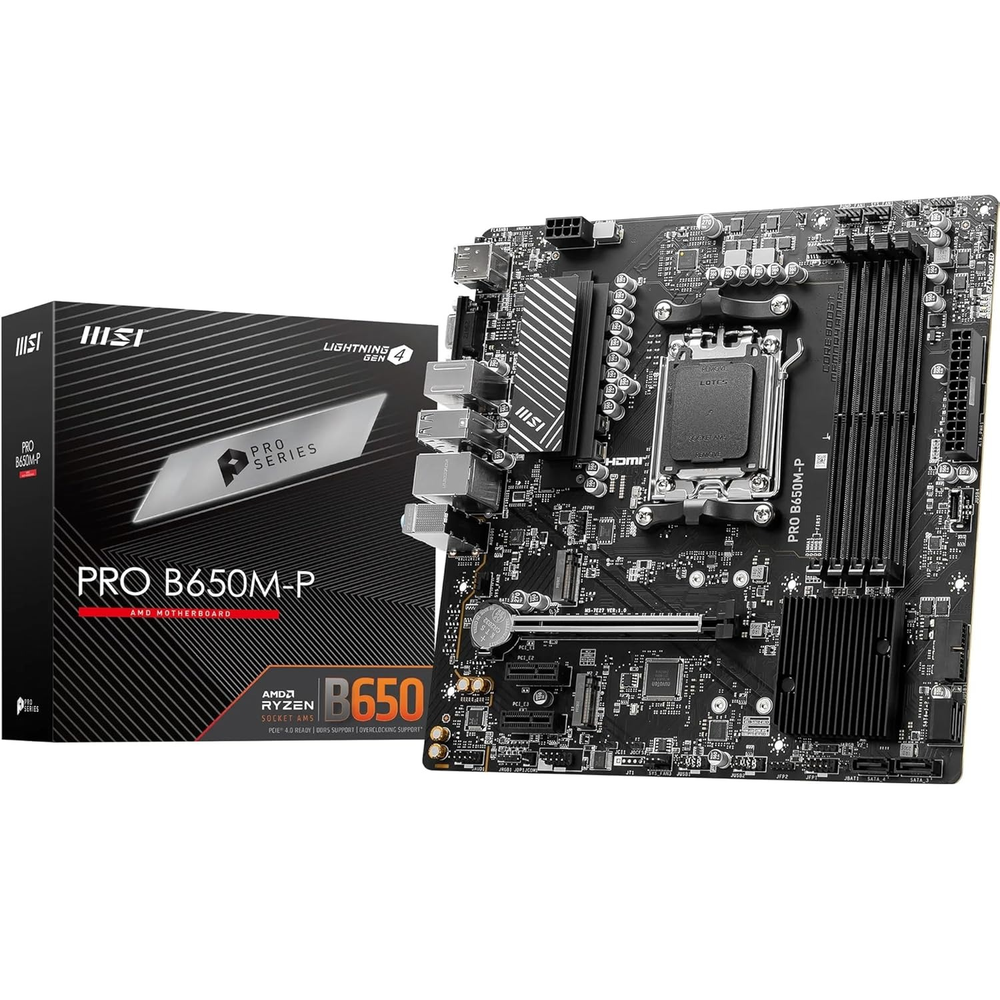

MSI PRO B650M-P Motherboard
Technical specification
AMD B650 mATX Motherboard for AM5 — No Wi-Fi, 2.5G LAN, USB 10Gbps Front Type-C, Dual PCIe 4.0 M.2, DDR5 7200+ OC, 4x DDR5 Slots up to 256GB, HDMI 2.1 + DisplayPort 1.4 + VGA, 6-layer 2oz copper PCB, Ryzen 9000 / 8000 / 7000 Ready.
The MSI PRO B650M-P is the most affordable wired-only mATX on AMD B650 — designed for business, home, and budget gaming builds that don't need Wi-Fi. Built on a 6-layer 2oz copper PCB with Core Boost VRM, it features Realtek 2.5G LAN, dual PCIe 4.0 x4 M.2 slots, front USB 10Gbps Type-C, triple video output (HDMI 2.1 + DisplayPort 1.4 + VGA), Flash BIOS Button, AMD EXPO DDR5 up to 7200+ MT/s, and EZ Debug LED — maximum value in a clean compact mATX package.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector, 6-layer 2oz copper PCB
>Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G | RAID 0, 1, 10
>Connectivity: No Wi-Fi; Realtek 8125BG 2.5G LAN
>USB: Rear — 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2/PCI_E3: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | mATX (243.84 x 243.84 mm), 6-layer 2oz copper PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 7200+(OC) / 4800(JEDEC) MHz; 1DPC 1R max 7200+ MHz / 1DPC 2R max 6000+ MHz / 2DPC 1R max 6000+ MHz / 2DPC 2R max 5400+ MHz OC |
| Memory Standard | AMD EXPO, Dual Channel, Non-ECC Unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2/PCI_E3: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260); No PCIe 5.0 M.2 |
| SATA | 4x SATA 6G | RAID 0, 1, 10; M.2 NVMe RAID 0, 1 |
| LAN | Realtek 8125BG 2.5G LAN (no Wi-Fi) |
| Wireless | None |
| Rear USB | 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz) + 1x VGA (1920x1200@60Hz) — iGPU only |
| Audio | Realtek ALC897, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 3x System Fan, Smart Fan 6 |
| RGB | 2x ARGB V2 headers, 2x RGB headers, 4x EZ Debug LED |
| Extras | Flash BIOS Button, Click BIOS 5, EZ M.2 Clips, TPM 2.0, COM port header (JCOM), Chassis Intrusion header, metal backplate |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
