MSI PRO B850-S WIFI6E Motherboard

MSI PRO B850-S WIFI6E Motherboard

AMD B850 ATX Motherboard for AM5 — Wi-Fi 6E (160MHz, 2.4Gbps), 2.5G LAN, USB 10Gbps, Dual PCIe 5.0 + PCIe 4.0 M.2, DDR5 8200+ OC, Simple Black Design, AI-PC Ready,...

Rs. 31,999.00
Rs. 31,999.00
OFF Sold out
Tax included. Shipping calculated at checkout.

Vendor:

MSI

Type:

Motherboard

Estimated deliver 5-7 days

People are viewing this right now

View full details
Let us know abour your query!
Description
Reviews

AMD B850 ATX Motherboard for AM5 — Wi-Fi 6E (160MHz, 2.4Gbps), 2.5G LAN, USB 10Gbps, Dual PCIe 5.0 + PCIe 4.0 M.2, DDR5 8200+ OC, Simple Black Design, AI-PC Ready, Ryzen 9000 / 8000 / 7000 Ready.

The MSI PRO B850-S WIFI6E is MSI's entry-level ATX option for AMD B850 with a clean, no-nonsense black design tailored for AI-PC and productivity builds. It offers Wi-Fi 6E (tri-band 160MHz, 2.4Gbps, MU-MIMO, BT 5.3), Realtek 2.5G LAN, USB 10Gbps rear Type-A and Type-C, one CPU-direct PCIe 5.0 x4 M.2 Gen5, one PCIe 4.0 x4 M.2 (CPU), dual HDMI 2.1 + DisplayPort 1.4 video output, and MSI's full EZ DIY suite with Flash BIOS Button — all at the most accessible B850 ATX price point.

    >CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5 >Power Delivery: 2x 8-pin CPU connectors (CPU_PWR x2), Core Boost, Memory Boost >Storage: 2x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 22110/2280, Ryzen 9000/7000; PCIe 4.0 x4 Ryzen 8000); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260, Ryzen 9000/8700/8600/8400/7000; PCIe 4.0 x2 Ryzen 8500/8300); 4x SATA 6G >Connectivity: Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps, MU-MIMO, 802.11ax), Bluetooth 5.3, Realtek 8125 2.5G LAN >USB: Rear — 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C; Front — 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C >PCIe: PCI_E1: PCIe 4.0 x16 (CPU, Ryzen 9000/7000; x8 Ryzen 8700/8600/8400; x4 Ryzen 8500/8300); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset) >Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
Specification Details
Chipset AMD B850
Socket AM5
Form Factor ATX (304.8 x 243.84 mm)
Memory 4x DDR5 UDIMM, up to 256GB; DDR5 8200–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8200+ MT/s / 1DPC 2R max 6400+ MT/s / 2DPC 1R max 6400+ MT/s / 2DPC 2R max 6000+ MT/s OC; Single-sided latches
Memory Standard AMD EXPO, A-XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered, High-Efficiency Mode
PCIe Slots PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset)

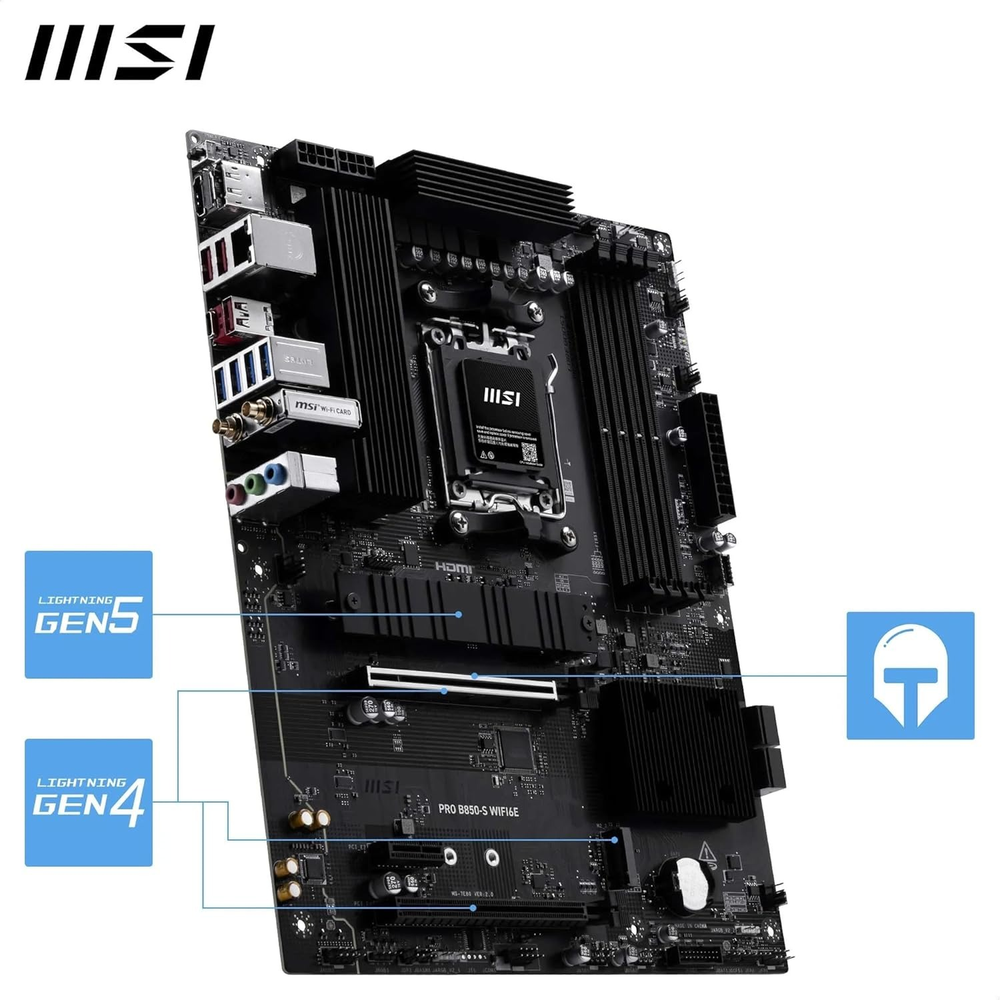

M.2 Slots M.2_1: PCIe 5.0 x4 (CPU, 22110/2280); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260)
SATA 4x SATA 6G | RAID 0, 1, 10; M.2 NVMe RAID 0, 1
LAN Realtek 8125 2.5G LAN
Wireless Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps, MU-MIMO, 802.11ax), Bluetooth 5.3

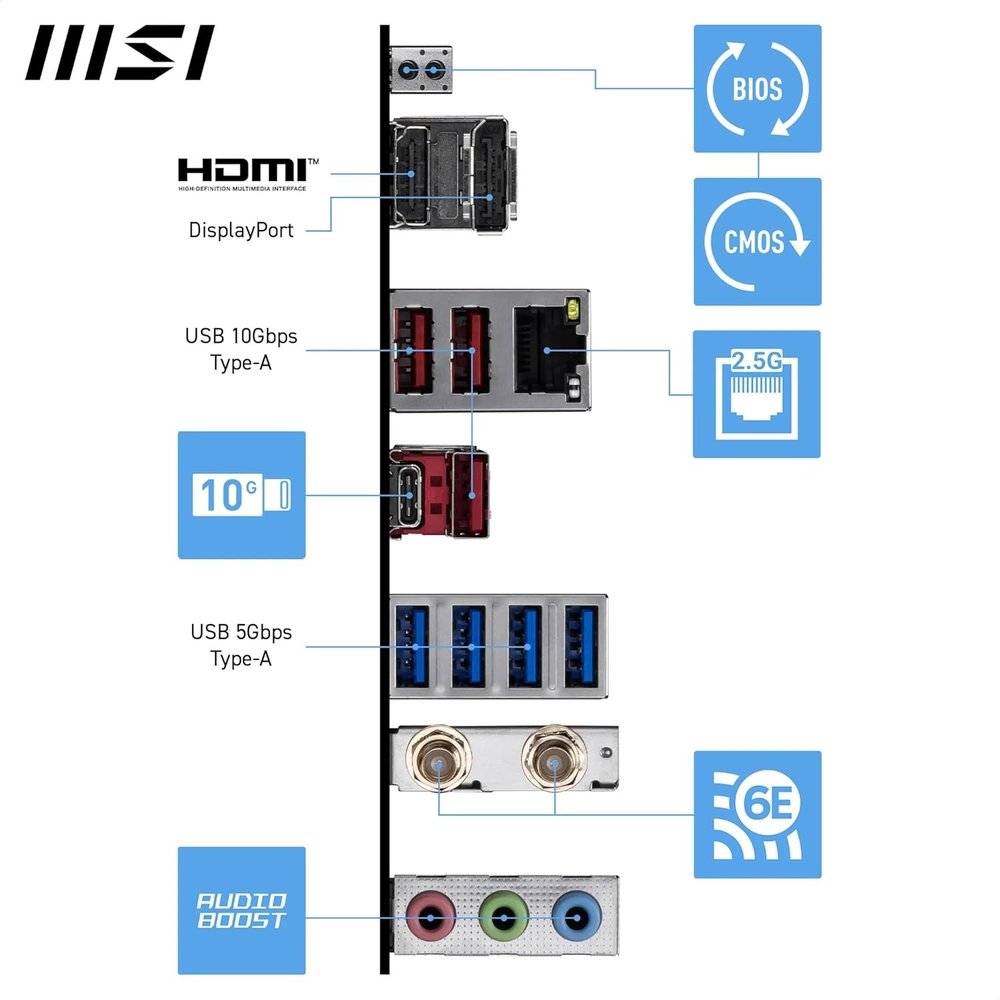

Rear USB 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
Front USB Headers 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
Video Output 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz) — iGPU only
Audio Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz
Fan Headers 1x CPU Fan, 1x Combo Fan (Pump/Sys), 4x System Fan, Smart Fan 6
RGB 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED, 1x EZ Memory Detection LED
Color Scheme Black — clean simple design for AI-PC builds

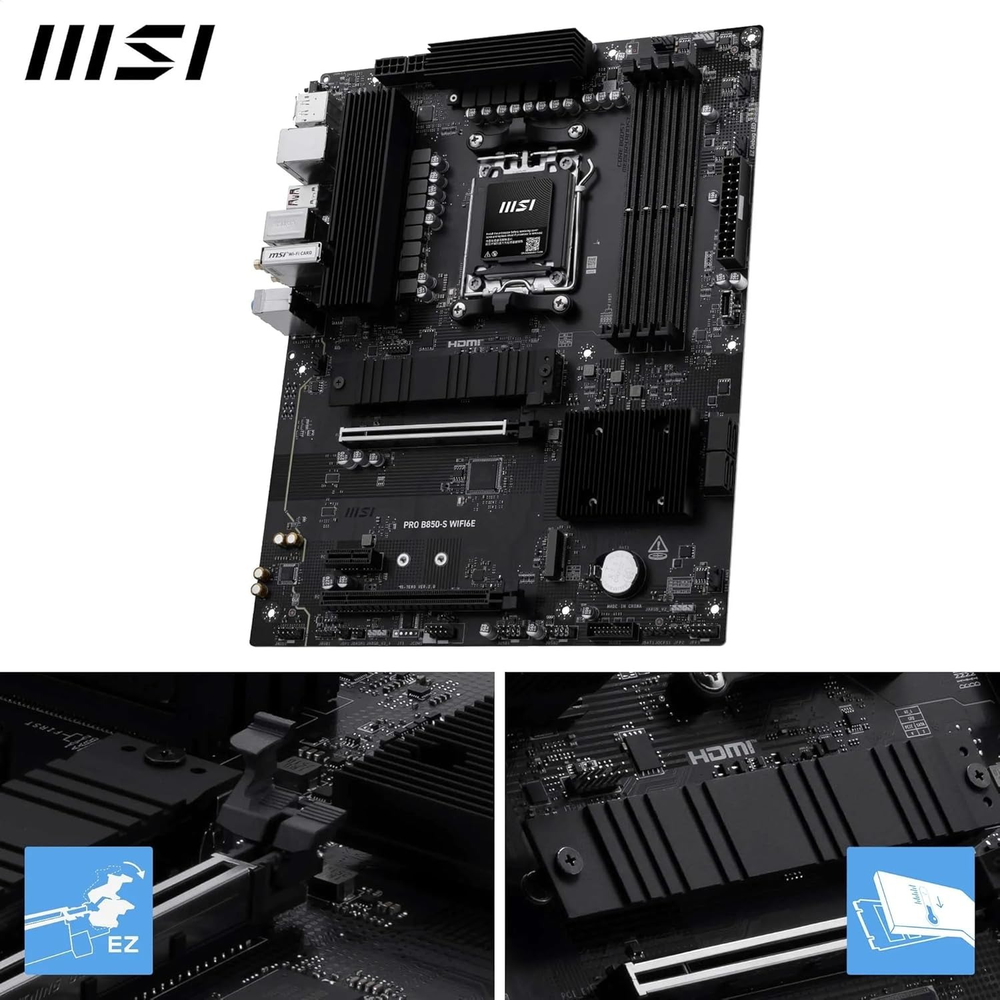

Extras EZ M.2 Clip, EZ PCIe Release, EZ Conn header, EZ Antenna, Flash BIOS Button, Click BIOS 5, Tuning Controller connector (JDASH), metal backplate
OS Support Windows 11 64-bit
