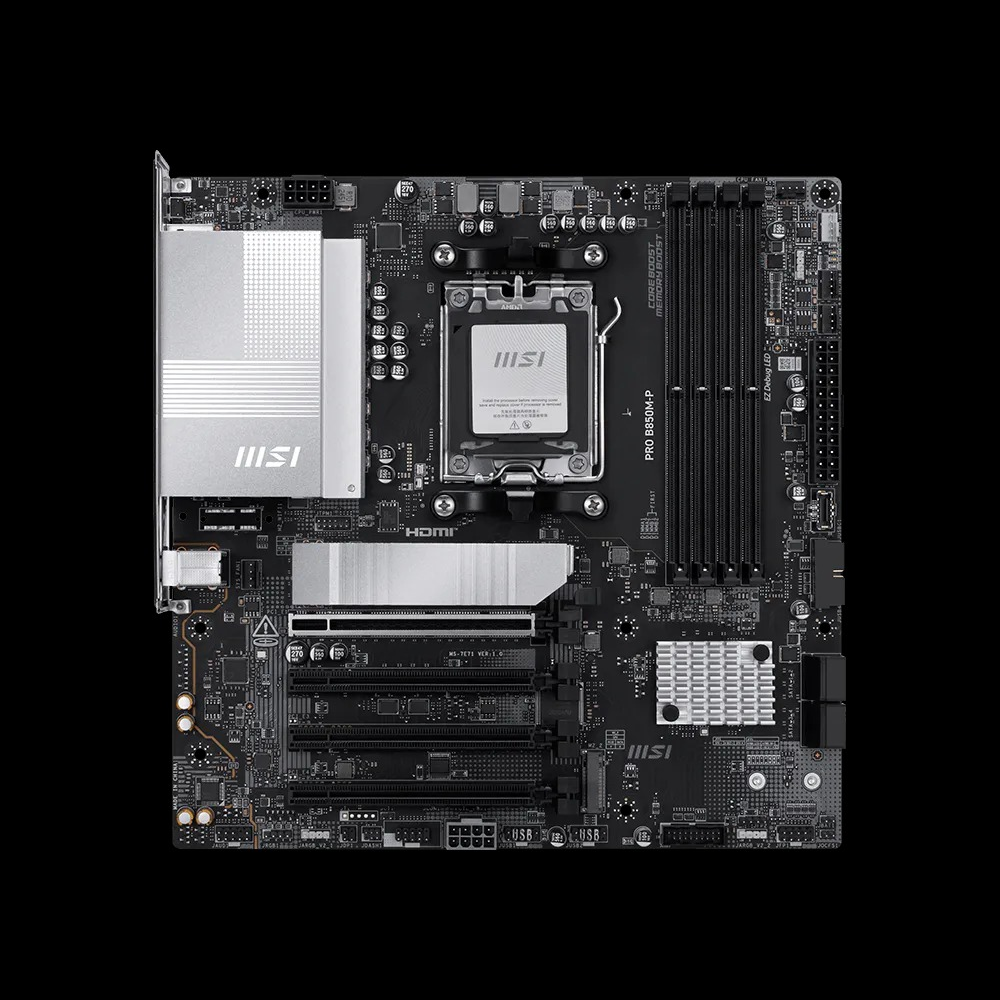

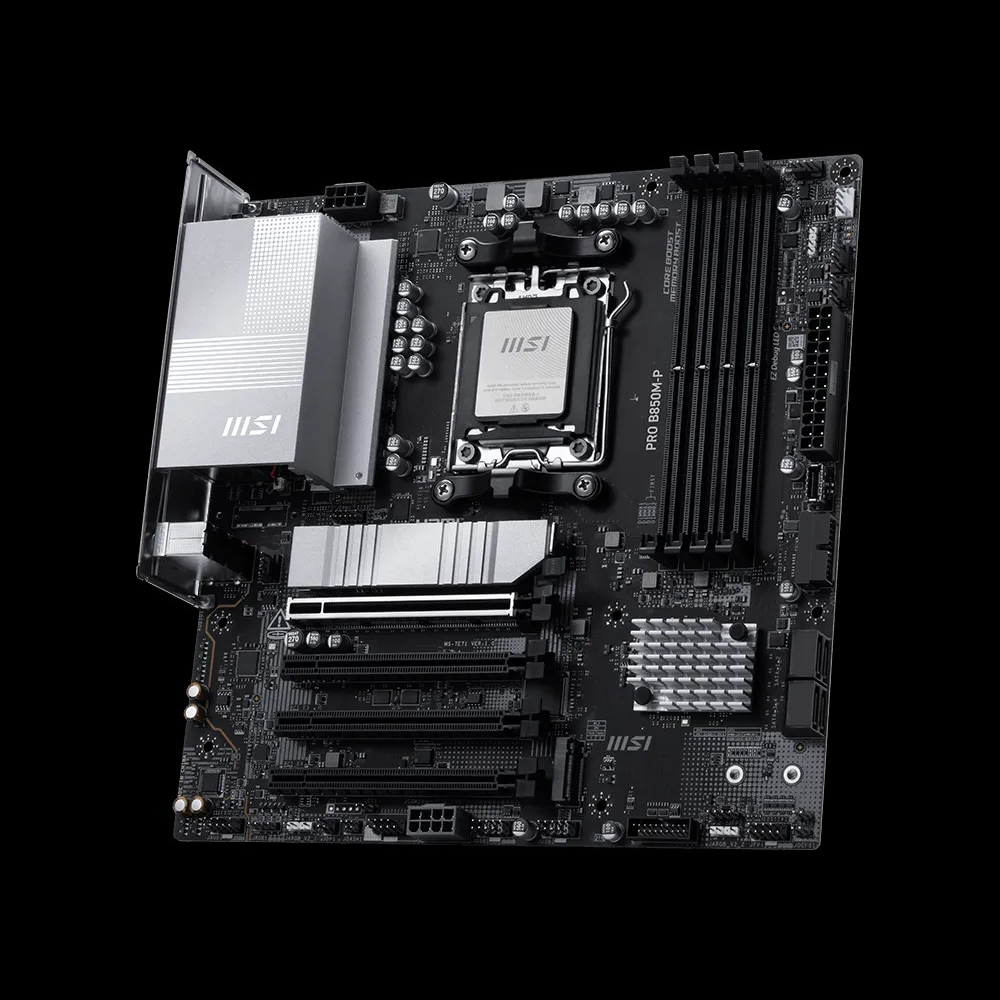

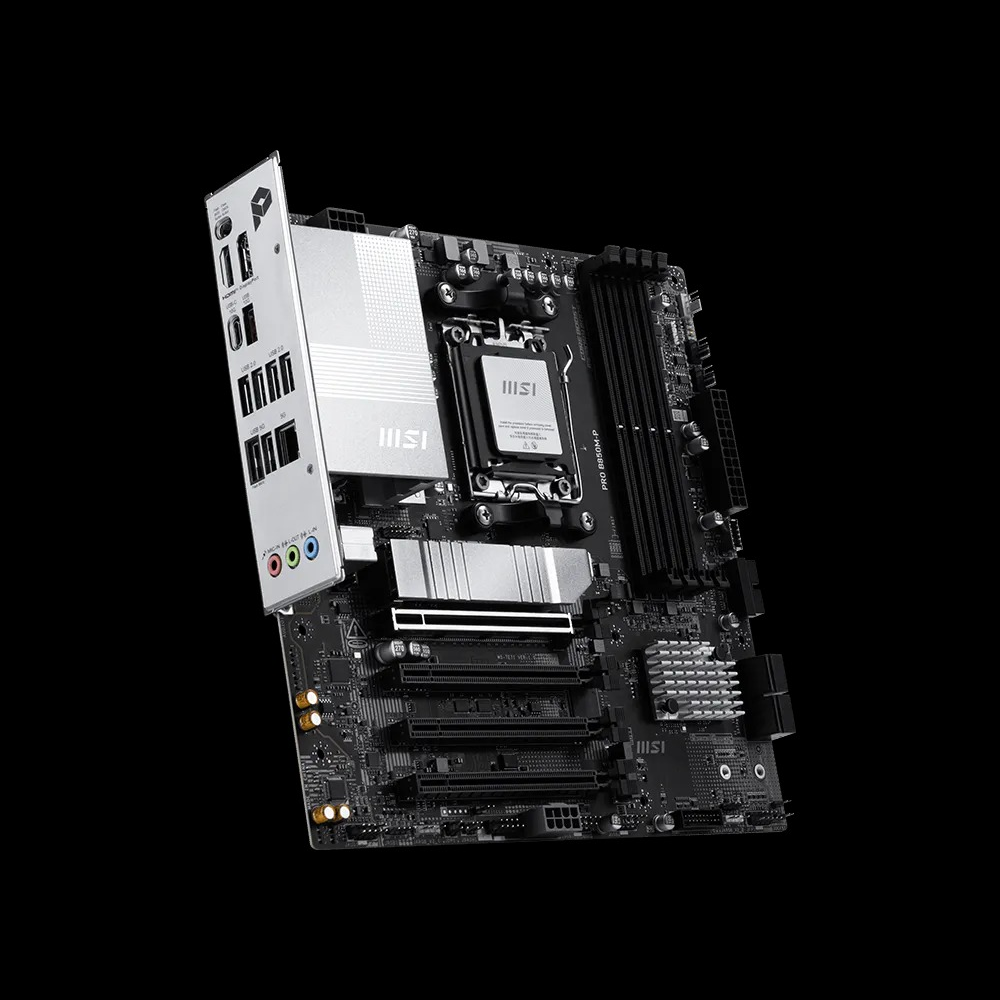

MSI PRO B850M-P Motherboard
MSI PRO B850M-P Motherboard
AMD B850 mATX Motherboard for AM5 — No Wi-Fi, 5G LAN, USB 10Gbps, Triple M.2 with PCIe 5.0 Gen5, DDR5 8200+ OC, Supplemental PCIe Power, Silver Design, AI-PC Ready, Ryzen...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
AMD B850 mATX Motherboard for AM5 — No Wi-Fi, 5G LAN, USB 10Gbps, Triple M.2 with PCIe 5.0 Gen5, DDR5 8200+ OC, Supplemental PCIe Power, Silver Design, AI-PC Ready, Ryzen 9000 / 8000 / 7000 Ready.
The MSI PRO B850M-P is the wired-only mATX entry in the PRO B850 family — for builders who don't need Wi-Fi and want to save cost without sacrificing core features. It sports the same harmonious silver colour scheme as the WIFI variant, along with Realtek 5G LAN, USB 10Gbps rear Type-C and Type-A, one CPU-direct PCIe 5.0 x4 M.2 Gen5 with EZ M.2 Shield Frozr II, one PCIe 4.0 x4 M.2 (CPU), one PCIe 4.0 x2 M.2 (Chipset), Supplemental PCIe Power 8-pin, and MSI's EZ DIY suite — excellent value for AM5 productivity and gaming mATX builds.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 1x 8-pin CPU connector, Supplemental PCIe Power (8-pin), Core Boost, Memory Boost
>Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260, Ryzen 9000/7000; PCIe 4.0 x4 Ryzen 8000); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260; PCIe 4.0 x2 Ryzen 8500/8300); M.2_3: PCIe 4.0 x2 (Chipset, 2280); 4x SATA 6G — EZ M.2 Shield Frozr II
>Connectivity: No Wi-Fi; Realtek 8126VB 5G LAN
>USB: Rear — 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C; Front — 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
>PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2, PCI_E3, PCI_E4: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD B850 |
| Socket | AM5 |
| Form Factor | mATX (243.84 x 243.84 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 8200–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8200+ MT/s / 1DPC 2R max 6400+ MT/s / 2DPC 1R max 6400+ MT/s / 2DPC 2R max 6000+ MT/s OC; Single-sided latches |
| Memory Standard | AMD EXPO, A-XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered, High-Efficiency Mode |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2/PCI_E3/PCI_E4: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260); M.2_3: PCIe 4.0 x2 (Chipset, 2280); EZ M.2 Shield Frozr II |
| SATA | 4x SATA 6G | RAID 0, 1, 10; M.2 NVMe RAID 0, 1, 5 (Ryzen 9000 only) |
| LAN | Realtek 8126VB 5G LAN (no Wi-Fi) |
| Wireless | None |

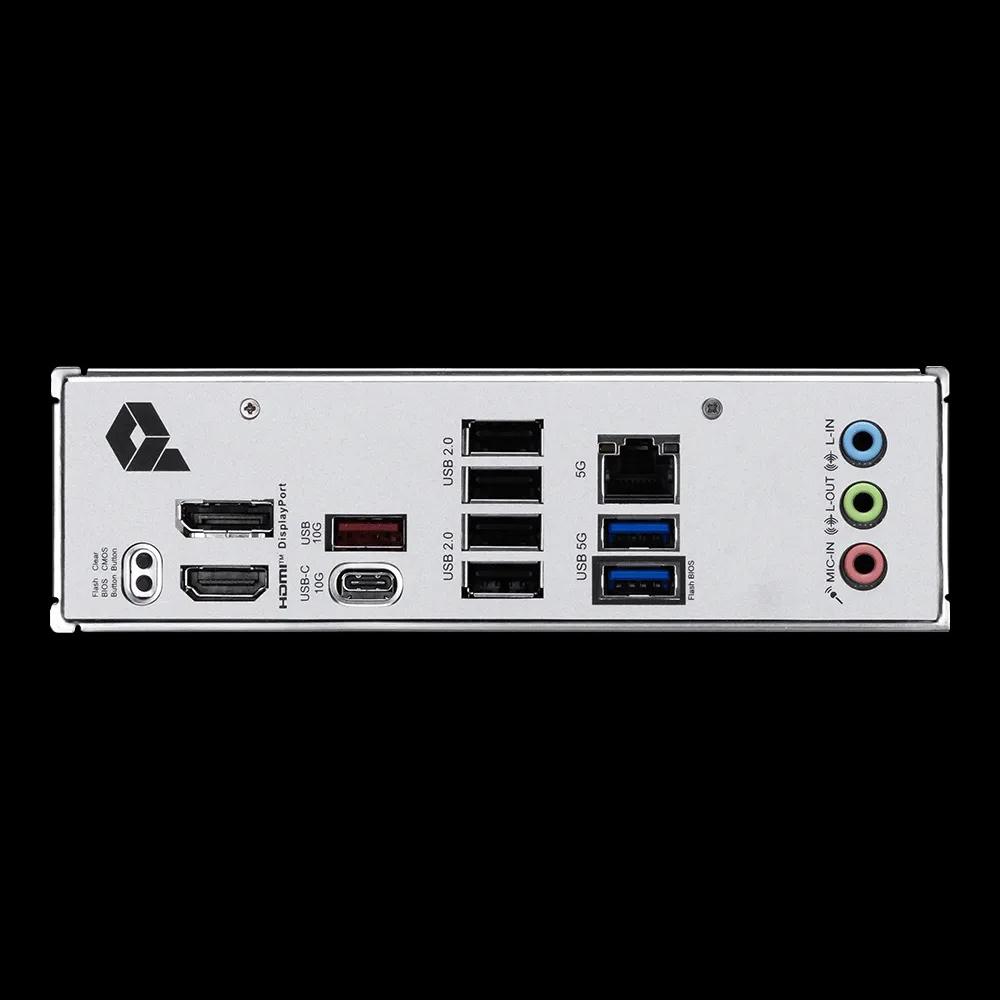

| Rear USB | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| Front USB Headers | 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Video Output | 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz) — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/Sys), 3x System Fan, Smart Fan 6 |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Color Scheme | Silver — compatible with white and black builds |
| Extras | EZ M.2 Shield Frozr II, EZ PCIe Clip II, EZ Conn header (JDASH), Supplemental PCIe Power (8-pin), Flash BIOS Button, Click BIOS 5, metal backplate, High-Efficiency Mode |
| OS Support | Windows 11 64-bit |
