MSI PRO H610M-G WIFI Motherboard
MSI PRO H610M-G WIFI Motherboard
Intel H610 mATX Motherboard for LGA 1700 — DDR5 up to 5600MHz, Wi-Fi 6E (160MHz), Intel 1G LAN, PCIe 4.0 x4 M.2, PCIe 4.0 x16, HDMI + DisplayPort + VGA,...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
Intel H610 mATX Motherboard for LGA 1700 — DDR5 up to 5600MHz, Wi-Fi 6E (160MHz), Intel 1G LAN, PCIe 4.0 x4 M.2, PCIe 4.0 x16, HDMI + DisplayPort + VGA, USB 5Gbps, 12th / 13th / 14th Gen Intel Core Ready.
The MSI PRO H610M-G WIFI is the essential Intel DDR5 business mATX — delivering Wi-Fi 6E and modern DDR5 connectivity at the most accessible H610 price. It features Core Boost VRM, Intel I219V 1G LAN, Wi-Fi 6E (160MHz, BT 5.3), PCIe 4.0 x4 M.2, PCIe 4.0 x16, triple video output (HDMI + DisplayPort + VGA), USB 5Gbps rear, Audio Boost 7.1-CH, and full Intel 14th/13th/12th Gen Core compatibility — a reliable, compact DDR5 platform for professional and everyday builds.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron — LGA 1700 socket
>Power Delivery: Core Boost, Memory Boost, 1x 8-pin CPU connector
>Storage: M2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); 2x SATA 6G
>Connectivity: Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11ax), Bluetooth 5.3; Intel I219V 1G LAN
>USB: Rear — 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
>PCIe: PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| Form Factor | mATX (211 x 243.84 mm) |
| Memory | 2x DDR5 UDIMM, up to 96GB; DDR5 5600(MAX OC) / 4800(JEDEC) MHz; Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Non-ECC Unbuffered DDR5, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242) — 1 slot only |
| SATA | 2x SATA 6G (no RAID support on H610) |
| LAN | Intel I219V 1G LAN |
| Wireless | Wi-Fi 6E (2.4/5/6GHz, 160MHz, MU-MIMO, 802.11 a/b/g/n/ac/ax), Bluetooth 5.3, M.2 Key-E (pre-installed) |
| Rear USB | 2x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |

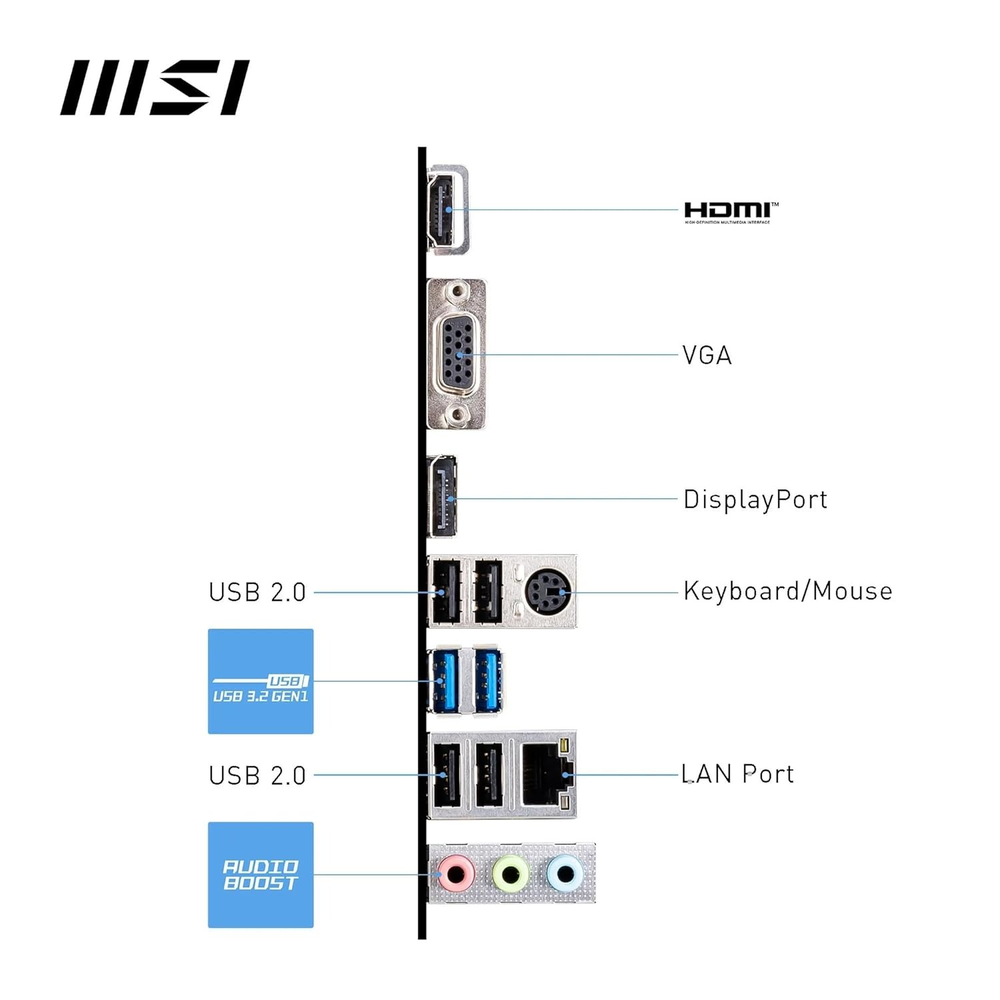

| Video Output | 1x HDMI + 1x DisplayPort + 1x VGA — iGPU only |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x System Fan |
| RGB | None |

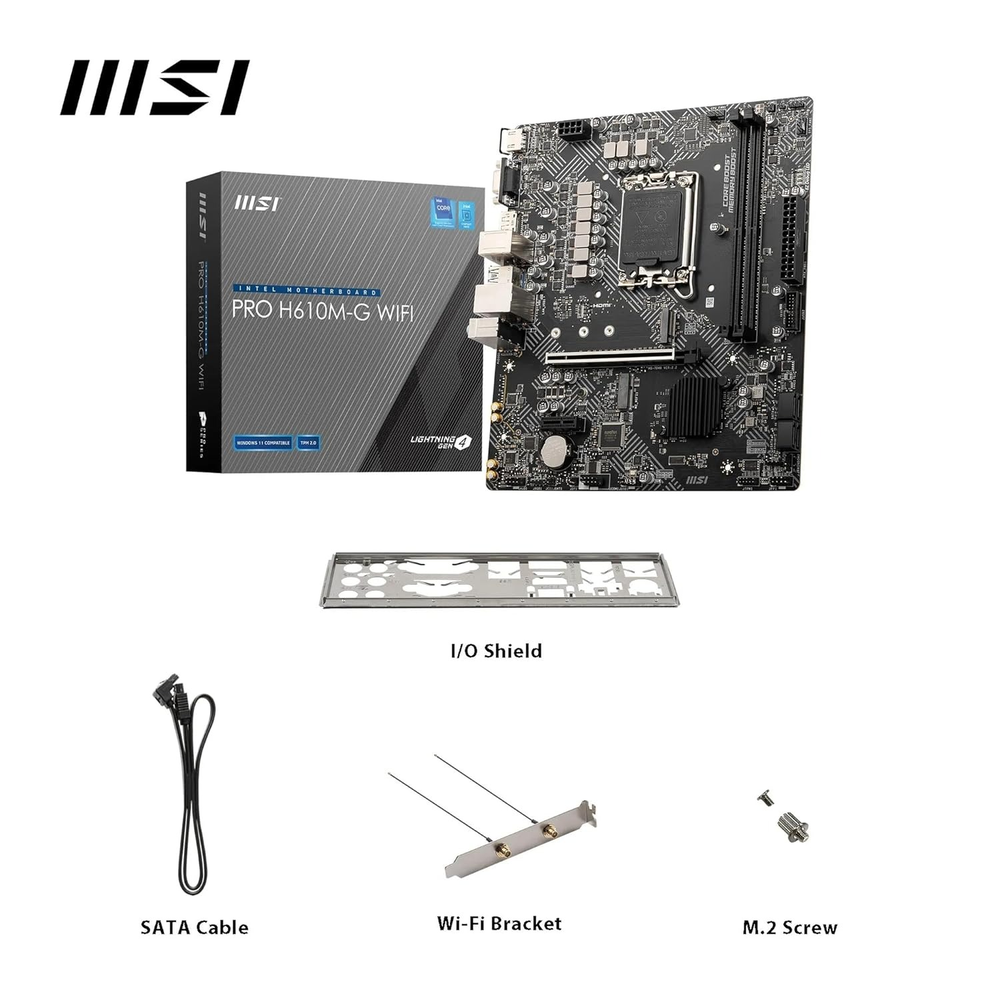

| Extras | Click BIOS 5, TPM 2.0 header, Chassis Intrusion header, I/O shield included, EZ M.2 Clip |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
