Motherboard // MSI

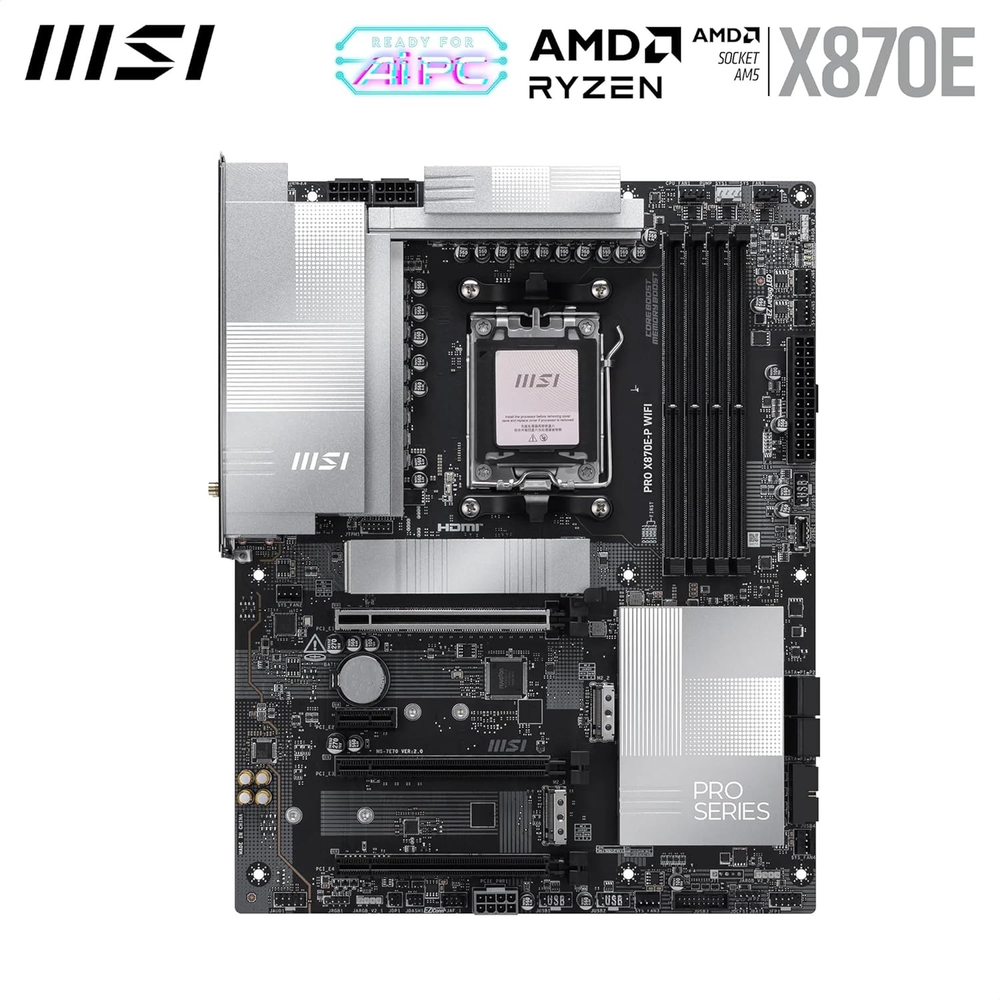

MSI PRO X870E-P WIFI Motherboard
Technical specification
AMD X870E ATX Motherboard for AM5 — 12+2+1 Phase VRM, 60A SPS, Wi-Fi 7, 5G LAN, USB4 40Gbps, PCIe 5.0 M.2 Gen5, DDR5 8200+ OC, Supplemental PCIe Power, Ryzen 9000 / 8000 / 7000 Ready.
The MSI PRO X870E-P WIFI is a clean silver-accented professional-series ATX board built on the AMD X870E chipset — designed for workstation and productivity builds that demand reliability alongside top-tier connectivity. It packs Wi-Fi 7, 5G LAN (Realtek), USB4 40Gbps, one CPU-direct PCIe 5.0 x4 M.2 Gen5, PCIe 5.0 x16 GPU slot, a Supplemental PCIe Power 8-pin header, DDR5 8200+ OC with EXPO, and a 12+2+1 power stage design with 60A Smart Power Stages for solid Ryzen 9000 performance.
-
>CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
>Power Delivery: 12+2+1 Phase VRM, 60A Smart Power Stages, dual 8-pin CPU connectors, Supplemental PCIe Power (8-pin), Core Boost, Memory Boost, server-grade PCB
>Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (Chipset, 22110/2280); M.2_3: PCIe 4.0 x4 (Chipset, 2280/2260); 4x SATA 6G
>Connectivity: Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4, Realtek RTL8126VB 5G LAN
>USB: Rear — 1x USB4 40Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
>PCIe: PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD X870E |
| Socket | AM5 |
| Form Factor | ATX (305 x 244 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB; DDR5 8200–5600 (OC) / 5600–4800 (JEDEC) MT/s; 1DPC 1R max 8200+ MT/s OC |
| Memory Standard | AMD EXPO, XMP, CUDIMM (bypass mode), Dual Channel, Non-ECC Unbuffered, High-Efficiency Mode |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset); PCI_E4: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (Chipset, 22110/2280); M.2_3: PCIe 4.0 x4 (Chipset, 2280/2260) |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8126VB 5G LAN |
| Wireless | Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps, MLO, 4KQAM), Bluetooth 5.4 |
| USB4 / 40Gbps | 1x USB4 40Gbps Type-C (Rear) |
| Rear USB | 1x USB4 40Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0 |
| Audio | Realtek ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/Sys), 6x System Fan, Smart Fan 6 |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| Color Scheme | Silver / Black — PRO Series professional aesthetic |
| Extras | EZ M.2 Clip, EZ PCIe Release, EZ Conn header, Supplemental PCIe Power (8-pin), Flash BIOS Button, Click BIOS 5, metal backplate |
| OS Support | Windows 11 / 10 64-bit |
